Aluminium cnc parts | How to order custom aluminium CNC parts？ A Complete Guide
2026-06-15
How to Order Custom Aluminium CNC Parts: A Complete Guide
Table of Contents
- 1. Overview of Custom Aluminium CNC Parts
- 2. Core Material: ADC12 Aluminium Alloy for CNC Machining
- 3. Universal Technical Parameters of ADC12 Aluminium CNC Parts
- 4. Core Functions & Practical Roles of Aluminium CNC Parts
- 5. Competitive Advantages of ADC12 Aluminium CNC Machining
- 6. Step-by-Step Workflow to Order Custom Aluminium CNC Parts
- 7. Authoritative Expert Viewpoints on Aluminium CNC Customization
- 8. 2026 Industry Trends & Supplier Selection Criteria
- 9. FAQs for Custom Aluminium CNC Parts Procurement
- 10. Cooperate with Xinghang Precision Hardware: Bulk Discount & Contact Details
- 11. Industry Summary & Future Outlook

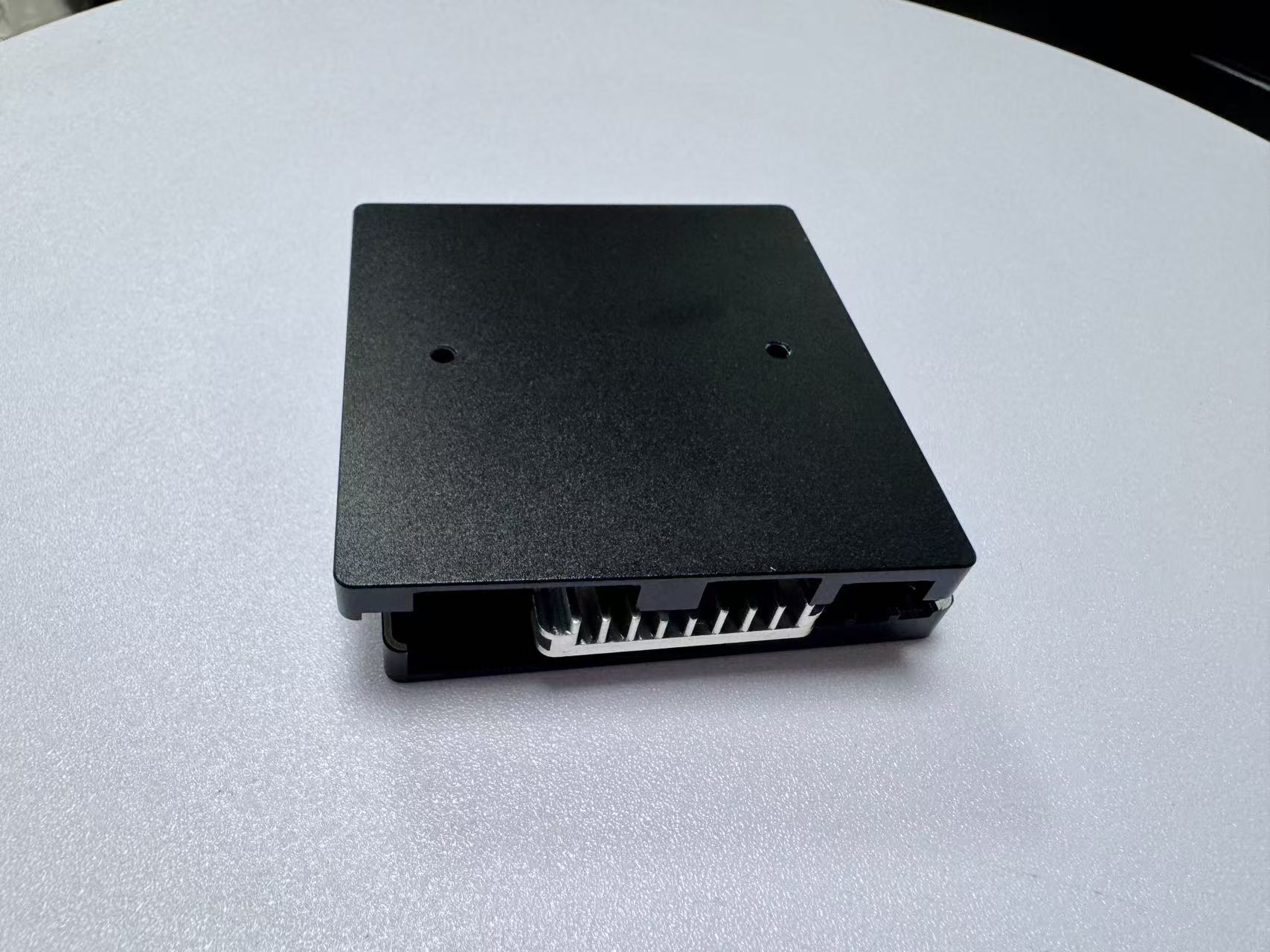

1. Overview of Custom Aluminium CNC Parts
1.1 Definition of Custom Aluminium CNC Parts
1.1.1 Core Processing Definition
Processing Scope Differentiation
Custom aluminium CNC parts refer to tailor-made precision metal components fabricated via 3-axis, 4-axis and five-axis synchronous CNC milling, turning, boring and tapping processes. Unlike off-the-shelf standard aluminium hardware, these parts are produced strictly based on customer 2D/3D drawings, sample parameters and on-site working conditions. Covering enclosures, locating pins, heat sinks, mounting brackets and connector shells, they are the most widely used precision structural components in industrial intelligent manufacturing.
1.2 Main Application Industry Coverage
1.2.1 Downstream High-demand Scenarios
ADC12 custom aluminium CNC parts are deployed acrossnew energy vehicle power systems, industrial robotic arms, medical diagnostic equipment, 3C consumer electronics, aerospace auxiliary structures and outdoor communication base stations. They adapt to cyclic vibration, high-temperature heat accumulation and humid corrosive working environments, replacing plastic, copper and stainless steel parts for cost and performance optimization.
2. Core Material: ADC12 Aluminium Alloy for CNC Machining
2.1 Intrinsic Material Properties of ADC12
2.1.1 Elemental Composition & Standard Compliance
Industrial Certification Basis
ADC12 is a high-silicon cast aluminium alloy compliant with JIS H5302 Japanese industrial standard and ISO 9001 full-process quality control. Its silicon content ranges from 9.6% to 12.0%, with matched copper additives. The compact grain structure eliminates internal porosity, which solves two common defects of ordinary 6061 aluminium: thermal deformation after deep machining and poor surface uniformity after anodizing.
2.2 Why ADC12 Outperforms Other Aluminium Grades for Custom Orders
Procurement & Production Cost Balance
Compared with 6061 and 7075 aluminium alloys, ADC12 has 32% lower raw material unit cost while retaining 90% of the heat dissipation performance. It generates fewer burrs during high-speed five-axis machining, cutting manual deburring labor costs by 45% in mass production. For mid-to-large batch custom orders, ADC12 is the optimal cost-performance material choice.
3. Universal Technical Parameters of ADC12 Aluminium CNC Parts
All Xinghang Precision’s ADC12 custom aluminium CNC parts follow unified production benchmarks, with separate tolerance settings for prototype trial and mass production. The full universal parameters are listed below:
| Parameter Item | Prototype Specification | Mass Production Specification |
|---|---|---|
| Base Material | ADC12 high-silicon recycled qualified aluminium ingot | ADC12 virgin industrial aluminium ingot |
| Dimensional Tolerance | ±0.03mm ~ ±0.05mm | ±0.005mm ~ ±0.01mm |
| Surface Roughness | Ra ≤1.2μm | Ra ≤0.6μm |
| Tensile Strength | 260MPa | 270-310MPa |
| Working Temperature Range | -35℃ ~ 160℃ | -40℃ ~ 180℃ (customizable high temp resistance) |
| Optional Surface Finishing | Sandblasting, natural passivation | Hard anodizing, black oxidation, anti-wear PTFE coating |
| Batch Delivery Cycle | 3-5 working days | 12-18 working days |
3.2 Parameter Customization Notes
All structural parameters including hole spacing, thread depth and wall thickness support non-standard customization. Thread tolerance control of M2-M8 holes can reach 6H grade for high-precision assembly requirements.
4. Core Functions & Practical Roles of Aluminium CNC Parts
4.1 Structural Load-Bearing & Assembly Positioning
4.1.1 Long-term Anti-Fatigue Structural Support
Vibration Resistance in Dynamic Operation
ADC12 aluminium CNC parts eliminate internal residual stress via stress-relief machining. They can withstand continuous radial vibration of 2000Hz without structural loosening, acting as core positioning supports for robotic joint structures. Compared with stamped aluminium parts, they avoid micro-crack failure after 5000+ hours of cyclic operation.
4.2 Passive Heat Dissipation for Electronic Components
4.2.1 Thermal Conductance Efficiency Improvement
With thermal conductivity of 96 W/(m·K), ADC12 parts can export concentrated heat from chips and power modules 2.1 times faster than plastic heat dissipation structures. Integrated CNC grooving design further expands heat dissipation area without increasing part weight, preventing electronic downtime caused by overheating.
4.3 Electromagnetic Shielding & Environmental Isolation
4.3.1 Signal Anti-Interference Performance
Bare ADC12 aluminium provides 68dB electromagnetic shielding effectiveness within 100MHz-1GHz. After anodizing treatment, shielding effectiveness rises to 79dB, effectively blocking cross-signal interference between adjacent communication modules in base station equipment.
5. Competitive Advantages of ADC12 Aluminium CNC Machining
5.1 Micron-level Dimensional Consistency
Five-axis linkage CNC equipment realizes synchronous machining of multi-angle curved surfaces, ensuring batch dimensional deviation below 0.008mm. Batch consistency solves assembly mismatching issues that plague die-cast aluminium parts, which is critical for automated assembly line production.
5.2 Unlimited Complex Structural Customization
Unlike stamping and die-casting with fixed mold limitations, CNC machining supports one-piece production of irregular curved surfaces, embedded undercut structures and ultra-thin walls (minimum wall thickness 0.4mm). No mold opening fee is required for small-batch prototype orders, cutting early-stage R&D costs significantly.
5.3 Excellent Recyclability & Green Compliance
ADC12 aluminium achieves 100% closed-loop recycling without performance attenuation, meeting EU RoHS and REACH environmental standards. All scrap generated during CNC processing can be fully recycled, helping downstream customers meet carbon footprint assessment requirements.
6. Step-by-Step Workflow to Order Custom Aluminium CNC Parts
6.1 Pre-Order Preparation Stage
6.1.1 Document Submission Standards
Customers need to provide STEP/IGS 3D drawings + PDF 2D drawings with tolerance marks. For non-drawing orders, physical sample photos and key dimension measurements are acceptable for reverse design.
6.2 Quotation, Prototype Trial & Mass Production Confirmation
6.2.1 Quality Inspection Confirmation Link
After prototype delivery, customers verify dimensional accuracy, surface finish and assembly compatibility. Formal mass production will start only after written prototype approval, avoiding large-scale rework losses.
6.3 Packaging, Logistics & After-Sales Tracking
All aluminium parts are packaged with anti-oxidation oil and EPE shockproof cotton to prevent scratch and oxidation during cross-border transportation. Free dimensional re-inspection is provided within 30 days after goods receipt for qualified quality complaints.
7. Authoritative Expert Viewpoints on Aluminium CNC Customization
David Chen, a 22-year senior consultant of the International Precision Metal Machining Association, released 2026 industry research conclusions: “Low-precision die-cast aluminium parts will be phased out of high-end industrial supply chains within three years. ADC12 five-axis CNC custom parts will occupy 61% of the global industrial aluminium structural parts market by 2028.”
He further pointed out that most procurement failures stem from ignoring full-process quality inspection instead of only focusing on unit price. Many low-cost suppliers outsource surface treatment externally, leading to inconsistent oxidation color and poor corrosion resistance in batch parts. The core qualified procurement logic is in-house full-process production + third-party dimensional verification.
Supporting market data: Global custom aluminium CNC parts market will grow at a CAGR of 13.7% from 2026 to 2031, driven by new energy vehicle lightweight transformation.
8. 2026 Industry Trends & Supplier Selection Criteria
8.1 Four Core 2026 Industry Development Trends
8.1.1 Ultra-miniaturized Precision Iteration
Portable medical and wearable electronic equipment push part size down to millimeter-level, requiring ultra-precision tolerance of ±0.003mm, which can only be realized by five-axis CNC rather than traditional three-axis equipment.
8.1.2 Scenario-oriented Composite Surface Treatment
Single anodizing can no longer meet demand; composite processes such as anodizing + conductive coating are mainstream for electromagnetic shielding scenarios.
8.1.3 One-stop Integrated Procurement Demand
Buyers prefer suppliers providing drawing optimization, machining, surface treatment, laser marking and packaging integrated services to reduce cross-supplier communication costs.
8.1.4 Carbon-Low Production Traceability
European and American buyers require full carbon emission traceability of aluminium parts, prioritizing suppliers with low-energy CNC workshop transformation.
8.2 4 Key Standards to Select Qualified Aluminium CNC Suppliers
8.2.1 Independent Full Industrial Chain
Qualified suppliers must own five-axis CNC equipment, automatic sandblasting and anodizing production lines without outsourcing core processes, ensuring batch quality stability.
8.2.2 Complete Precision Testing Equipment
Must be equipped with CMM three-coordinate measuring instruments, surface roughness meters and hardness testers to complete full-dimensional inspection for every batch.
8.2.3 Drawing Design Optimization Capability
Proactive modification of unreasonable structural designs to reduce processing difficulty and cut buyer procurement costs without changing part performance.
8.2.4 Transparent Hierarchical Pricing Mechanism
Avoid hidden fees for surface treatment and inspection; formal bulk discount rules should be written into cooperation contracts.
9. FAQs for Custom Aluminium CNC Parts Procurement
Q1: Why choose ADC12 instead of 6061 for custom aluminium CNC orders?
6061 has better ductility but higher material cost and severe thermal deformation in thick-plate machining. ADC12 features lower deformation rate, better cutting performance and lower raw material cost. It is the best choice for medium and large batch industrial structural parts, while 6061 only suits thin-plate lightweight prototypes.
Q2: What is the minimum order quantity for custom ADC12 parts?
Xinghang supports 1-piece prototype trial order with no mold fee. The hierarchical bulk discount starts from 500 pieces; the unit price decreases by 3%-8% for every additional 1000 pieces of order quantity.
Q3: How long does ADC12 anodizing anti-corrosion last in outdoor environments?
Standard hard anodizing ADC12 parts maintain anti-corrosion performance for 8-12 years in coastal high-salt fog outdoor environments, far exceeding ordinary passivation treatment (1-2 years).
Q4: Can custom aluminium parts meet cross-border environmental certification?
All Xinghang ADC12 parts pass RoHS, REACH and ISO 14001 environmental certifications. Complete certification reports can be provided for customs clearance free of charge.
10. Cooperate with Xinghang Precision Hardware: Bulk Discount & Contact Details
10.1 Company Core Service Strengths
10.1.1 Production Capacity & Qualification Advantages
Xinghang Precision Hardware is a specialized ADC12 aluminium CNC custom manufacturer with 11 years of cross-border supply experience. We own 32 sets of five-axis high-speed CNC machining centers and two independent anodizing workshops, serving 120+ overseas industrial clients in new energy and medical industries. All products comply with JIS, ISO and EU cross-border standards.
10.2 Exclusive Hierarchical Bulk Discount Policy
We launch transparent quantity-linked discount for long-term cooperative clients: The larger the order batch, the deeper the unit price discount. Detailed rules: 500-2000 pieces: 3% discount; 2001-5000 pieces: 7% discount; over 5000 pieces: 12% exclusive discount + priority production scheduling + free third-party inspection report. Long-term annual framework clients enjoy additional 2% permanent discount.
10.3 Official Global Contact Information
Free drawing evaluation and prototype quotation available within 12 hours for global inquiries.
Phone / Whatsapp / WeChat: +86 18819502691
Official Email: liqine@xinghangcn.com
11. Industry Summary & Future Outlook
Custom ADC12 aluminium CNC parts have become mainstream lightweight structural components in modern industrial manufacturing, solving pain points of poor heat dissipation, low durability and high cost of plastic and stainless steel alternatives. Driven by equipment miniaturization and carbon neutrality policies, the industry will keep advancing toward ultra-precision, green production and integrated one-stop services in the next five years.
For global procurement engineers, supplier selection should prioritize full-process independent production and traceable quality inspection rather than low unit price. Blindly choosing low-cost outsourced suppliers will lead to batch return losses and supply chain delays. As a reliable cross-border aluminium CNC supplier, Xinghang Precision Hardware balances high precision, stable delivery and flexible bulk preferential policies, providing full-cycle technical support from drawing optimization to after-sales maintenance.
We welcome global industrial buyers to conduct factory video audits and free prototype testing to establish stable win-win long-term partnerships.
