LED display connecting plate for LED screen splicing

XH-66
High-quality aluminum zinc connecting plate for LED display cabinet, durable die-cast parts, stable structure & reliable performance for LED screen applications.
minimum order
1 piece
Quantity:
Contact Now
add to cart

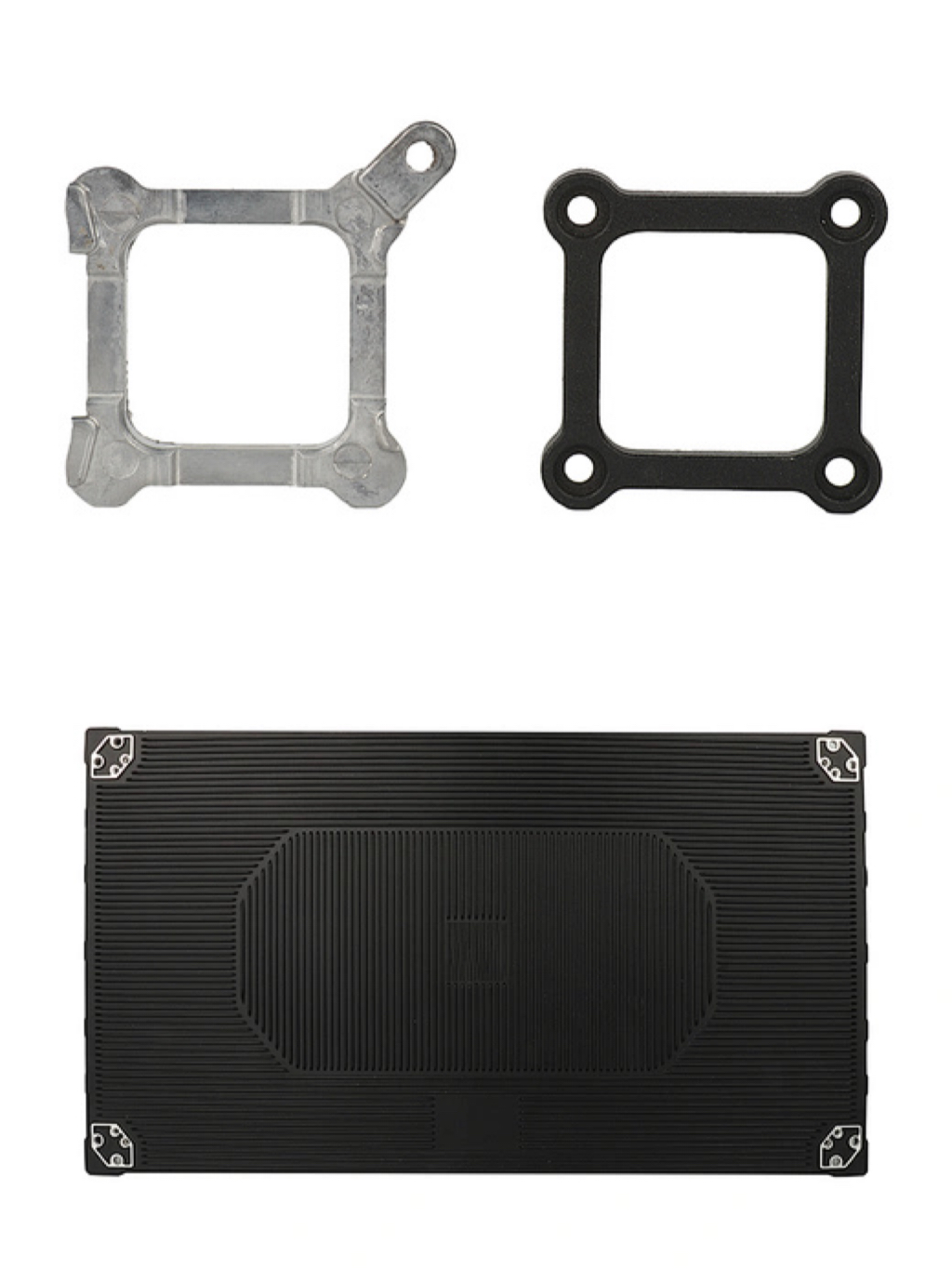

LED display connecting plate for LED screen splicing

LED display connecting plates are essential structural accessories designed for modular LED screen splicing. They precisely connect and fix LED modules, ensuring seamless assembly, flat screen alignment, and stable overall structural rigidity. Effectively eliminating splicing gaps and module displacement, these plates strengthen vibration resistance and improve installation consistency. Meanwhile, they assist heat dissipation and support long-term stable operation for indoor, outdoor, and special-shaped LED display screens.


 What is an LED display splicing connecting plate?

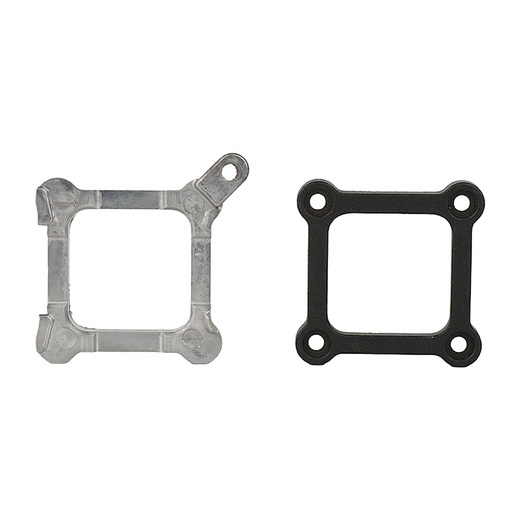

An LED display splicing connecting plate is an aluminum structural fitting specially used for assembling LED screen modules. It fixes and aligns display modules tightly to eliminate splicing gaps, strengthen the overall frame rigidity, and ensure a flat, stable screen surface for indoor, outdoor and curved LED displays.


  • Core Features（LED Display Connecting Plate）

  • Precision Splicing Performance
    Ensures zero-gap and flat alignment during LED module assembly, avoiding screen unevenness and displacement.
  • High Structural Stability
    Reinforces overall display frame rigidity, effectively resisting vibration, impact and long-term deformation.
  • Lightweight & High-Strength Alloy Material
    Made of premium aluminum alloy, featuring light weight, high hardness and excellent corrosion resistance.
  • Fast & Accurate Installation
    Standard positioning holes and threaded structure enable quick locking, improving on-site assembly efficiency.
  • Excellent Environmental Adaptability
    Supports stable operation for indoor, outdoor and curved special-shaped LED display screens.
  • Durable Surface Treatment
    Anodized finish improves oxidation resistance, scratch resistance and long service life.
  • Full Customization Available
    Custom sizes, hole positions and shapes to match various LED display module specifications.

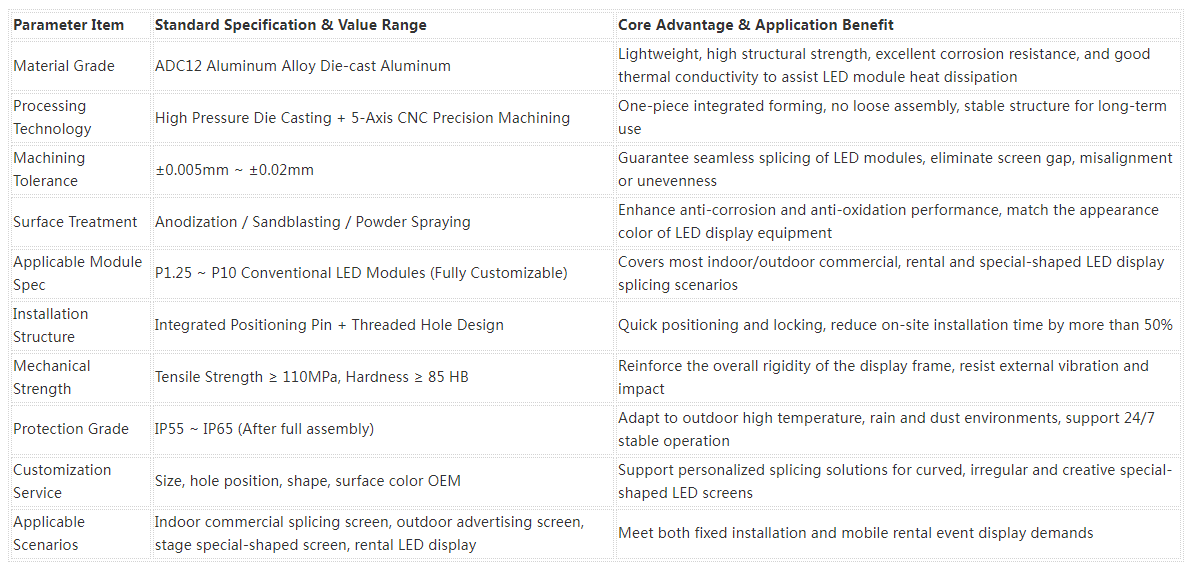

    Key Technical Parameters of LED Display Splicing Connecting Plate



    LED Display Splicing Connecting Plate



FAQ | LED Display Splicing Connecting Plate

Q1: What material options are available for LED display splicing connecting plates?

A: We mainly supply ADC12 Aluminum Alloy die-cast connecting plates. 6061/6063 solid CNC aluminum plates are also available for high-precision requirements.

Q2: What processing technology do you adopt?

A: High-pressure die casting + precision CNC machining, including milling, drilling and tapping to guarantee assembly accuracy.

Q3: What tolerance can you achieve?

A: Dimensional tolerance: ±0.03mm~±0.08mm; hole position tolerance: ±0.02mm~±0.05mm, to realize seamless splicing of LED cabinets.

Q4: What kinds of surface treatments can be provided?

A: Sandblasting, anodizing, laser engraving, electrophoretic coating. Anti-rust and scratch-resistant treatment for indoor & outdoor usage.

Q5: Can you customize connecting plates according to our drawings or samples?

A: Yes, we provide full OEM & ODM service. Accept STEP, IGES, DWG, PDF drawing formats. Custom size, hole layout and structure are supported.

Q6: What is your MOQ?

A: Small trial orders for prototype testing are acceptable. Better unit price for mass bulk orders.

Q7: How about production lead time?

A: Samples: 5–10 working days; Mass production: 10–20 working days, subject to order quantity.

Q8: What inspection tools do you use for quality testing?

A: CMM, calipers, micrometers, height gauges. Inspection reports can be provided upon request.

Q9: What problems can qualified connecting plates avoid during screen installation?

A: Prevent uneven splicing gaps, cabinet deformation, screen distortion, loose assembly caused by long-term vibration.

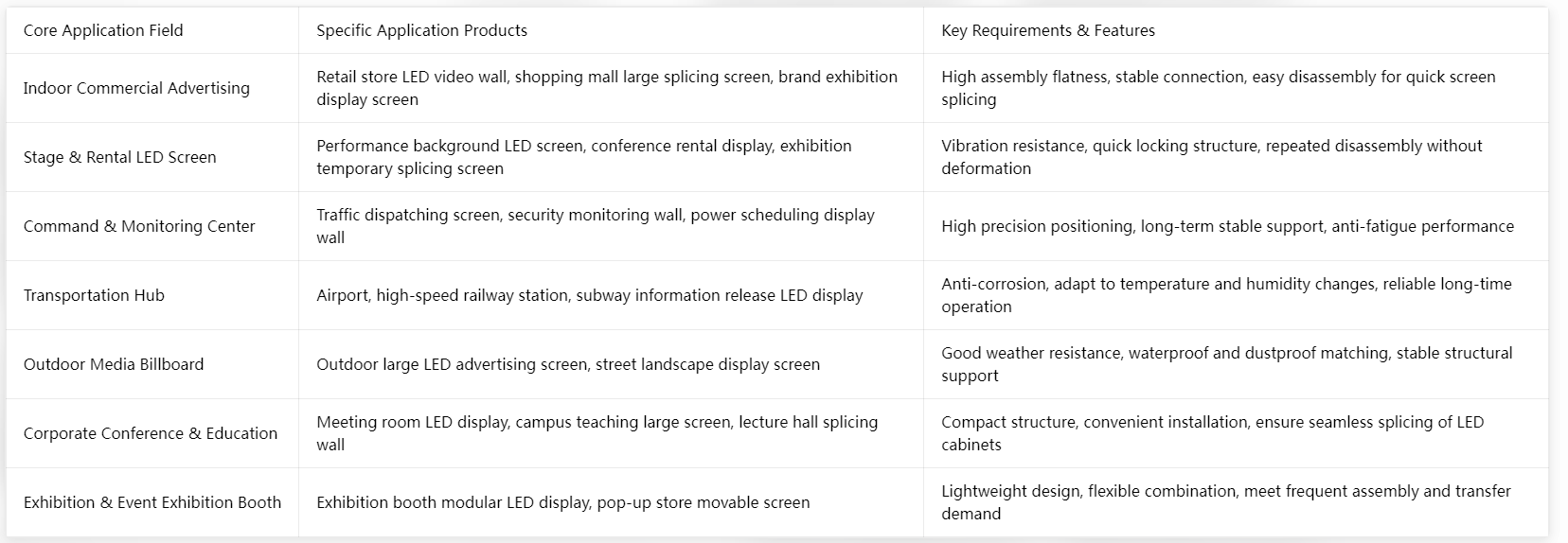

Q10: What scenarios are these connecting plates suitable for?

A: Indoor commercial screens, rental stage LED walls, monitoring command centers, transportation hub displays, outdoor advertising LED billboards, conference and education splicing screens.
