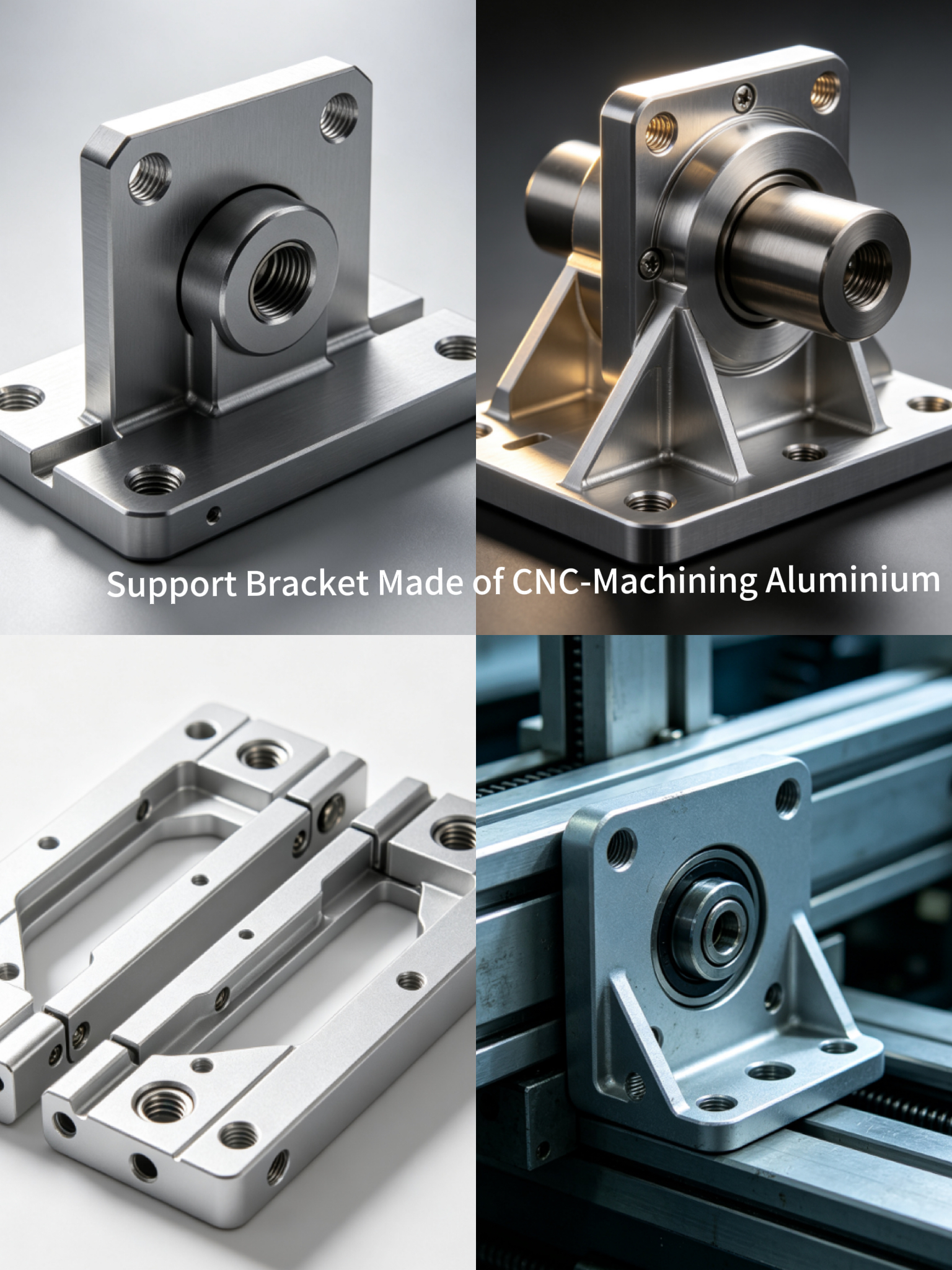

What is a CNC-machined Aluminum Shaft Support Bracket?
ACNC-machined aluminum shaft support bracket is a precision-engineered mechanical component used to securely support and position rotating shafts in industrial equipment, automation systems, conveyor machinery, and robotic transmission applications. This aluminum shaft support bracket is manufactured through high-pressure aluminum die casting combined with advanced CNC machining processes, delivering excellent mechanical strength, dimensional accuracy, vibration resistance, and corrosion protection.
Theshaft support bracket is made from high-quality ADC12 aluminum alloy, offering an ideal balance between lightweight construction and high structural rigidity compared with traditional steel brackets. Through precision CNC machining, drilling, tapping, and customized surface finishing, each bracket can be produced according to customer drawings, 3D models, and OEM requirements.
Our customized CNC aluminum shaft support brackets provide reliable shaft positioning, stable load-bearing performance, and long service life for industrial automation equipment, precision machinery, LED display systems, medical devices, and robotic applications.

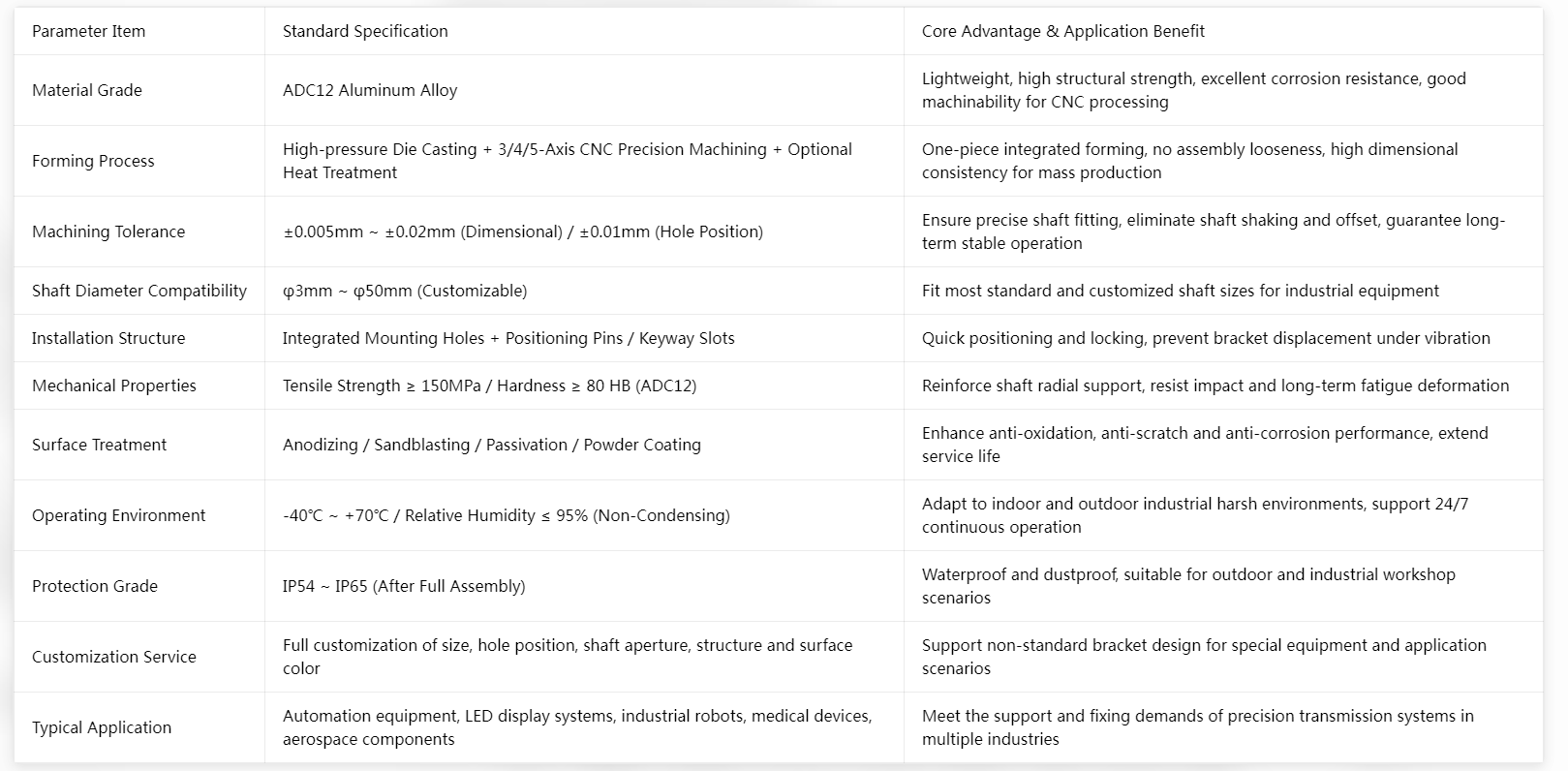

1. Detailed Technical Specifications of CNC-machined Aluminum Shaft Support Bracket

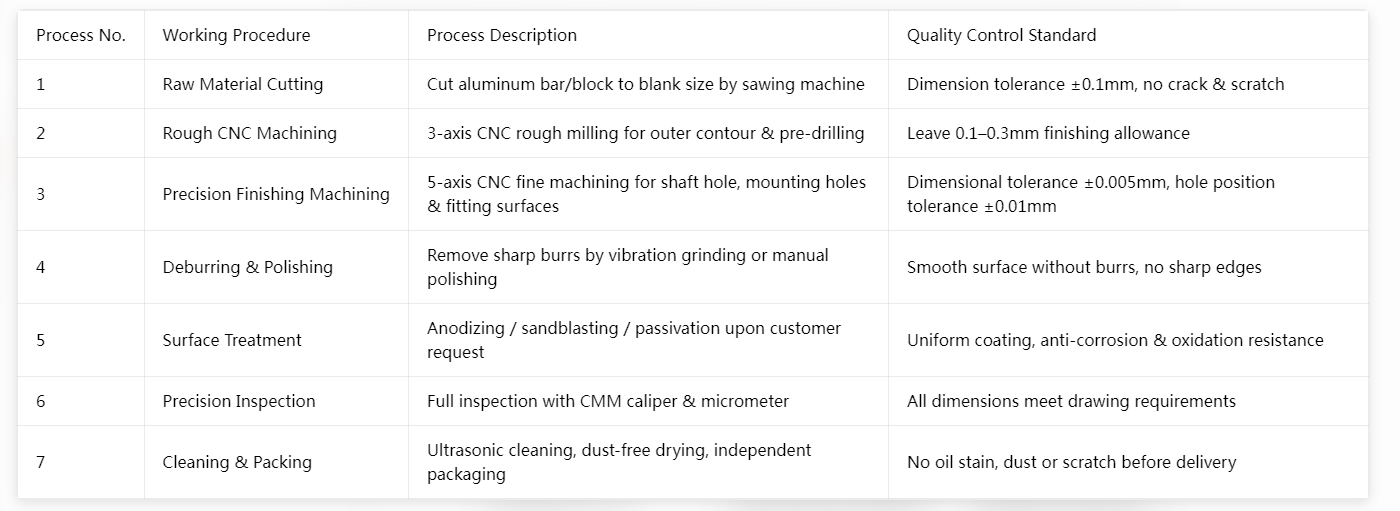

2. Production Process Table of CNC-machined Aluminum Shaft Support Bracket
Core Features of CNC-machined Aluminum Shaft Support Bracket
High Precision CNC Machining
Manufactured using advanced 3-axis, 4-axis, and 5-axis CNC machining equipment, the aluminum shaft support bracket achieves dimensional accuracy up to ±0.005mm. Precision machining ensures accurate shaft alignment, smooth rotation performance, and reduced mechanical vibration during operation.
Lightweight & High-Strength Aluminum Alloy
Made from premium ADC12 aluminum alloy, the shaft support bracket provides excellent strength-to-weight performance. Compared with steel components, aluminum brackets significantly reduce equipment weight while maintaining high rigidity, corrosion resistance, and structural stability.
Integrated One-Piece Structure
The aluminum shaft support bracket features an integrated structural design without unnecessary assembly joints. This one-piece construction improves vibration resistance, minimizes deformation, and enhances durability during continuous industrial operation.
Customized Shaft Aperture & Mounting Holes
The shaft diameter, mounting hole position, positioning pin holes, and threaded holes can be fully customized according to customer specifications. This allows the bracket to perfectly match different transmission systems, mechanical assemblies, and automation equipment.
Multiple Optional Surface Treatments
Various finishing options are available, including anodizing, sandblasting, passivation, and powder coating. These treatments enhance surface hardness, oxidation resistance, wear resistance, and overall product appearance.
Wide Application Compatibility
CNC-machined aluminum shaft support brackets are widely used in:
- Industrial automation equipment
- Conveyor systems
- Robotic transmission systems
- LED display manufacturing equipment
- Medical instruments
- Precision machinery
- Electronic equipment assembly lines
Full OEM & ODM Customization Support
Xinghang provides complete customization services, including product design optimization, prototype manufacturing, CNC machining, surface finishing, and mass production. Non-standard dimensions, special mounting structures, and customized shaft support solutions can be manufactured according to customer drawings.
Packaging & Shipping Methods
Multi-layer Protective Packaging
Each aluminum shaft support bracket is individually wrapped with PE foam, protective film, or bubble bags to prevent scratches, collision damage, and surface oxidation during transportation.
Strong Export Carton Packaging
Products are packed in reinforced corrugated export cartons with internal separators to prevent movement, friction, and impact between individual components.
Pallet Loading Option
For large-volume orders, products can be securely loaded on fumigated wooden pallets with stretch film and reinforced straps for safe container transportation.
Flexible Shipping Solutions
Xinghang supports multiple international shipping methods, including:
- Sea freight
- Air freight
- Express delivery (DHL / FedEx / UPS)
Shipping solutions can be selected according to customer delivery requirements, budget, and production schedule.
Complete Export Documentation
All shipments include professional product labels, quantity markings, packing lists, commercial invoices, and required customs clearance documents.
Moisture-proof Protection
Desiccant bags and moisture-resistant packaging materials are added for long-distance ocean transportation to prevent humidity damage and corrosion.
Frequently Asked Questions (FAQ)
Q: What material is the shaft support bracket made of?
A: The standard material is ADC12 aluminum alloy, which provides excellent strength, lightweight performance, and corrosion resistance. Customized aluminum materials are also available.
Q: Can you customize the shaft diameter and mounting hole positions?
A: Yes. Xinghang provides OEM and ODM customization services based on customer drawings, samples, and technical specifications.
Q: What surface treatments are available?
A: We offer anodizing, sandblasting, passivation, powder coating, and other customized finishing options.
Q: What CNC machining tolerance can you achieve?
A: Our precision CNC machining capability can achieve tolerances up to ±0.005mm, depending on product structure and requirements.
Q: How do you package and ship aluminum shaft support brackets?
A: Products are protected with foam packaging, export cartons, and pallet solutions. Sea freight, air freight, and express shipping are available.
Why Choose Xinghang?
- Integrated manufacturing facility for CNC machining and aluminum die casting
- High precision machining capability up to ±0.005mm
- Professional OEM & ODM customization services
- Advanced CNC equipment and strict quality control
- Wide range of aluminum surface treatment options
- Competitive factory-direct pricing
- Global export packaging and shipping support
- Experienced engineering team and responsive technical service
