0
power enclosure

Power enclosure

XH-0090
High-quality waterproof power enclosure. We support OEM orders, factory direct supply with cost-effective price.
Place of Origin:Guangdong, China
Brand Name:XingHang
Model Number:XH-0090
Certification:ISO9001/TS16949/RoHS/ISO1400
Application:Industrial Applications
Quantity:
Contact Now
add to cart

What are the functions of a power supply enclosure?

  • Mechanical Protection

  • Shield internal circuit boards, power modules and electronic components from collision, extrusion and mechanical damage during installation and operation.

  • Waterproof & Dustproof Protection

  • Cooperate with sealing gaskets to reach IP65/IP67 rating, block rainwater, dust and debris, suitable for outdoor working environments.

  • Heat Dissipation

  • Aluminum alloy shell efficiently conducts heat generated by power components, lower internal temperature and extend service life of power supply.

  • Electromagnetic Shielding (EMI Shielding)

  • Prevent external electromagnetic signals from interfering with power circuits; also avoid electromagnetic radiation from power supply affecting surrounding equipment.

  • Insulation & Safety Protection

  • Isolate internal live parts to reduce risks of electric leakage and accidental contact, meet electrical safety standards.

  • Mounting & Structural Support

  • Provide reserved mounting holes and fixing positions for installing power supply on poles, equipment brackets and cabinets.

  • Corrosion Resistance

  • After surface treatment, resist humidity, salt spray and ultraviolet rays, prevent oxidation for long-term outdoor use.

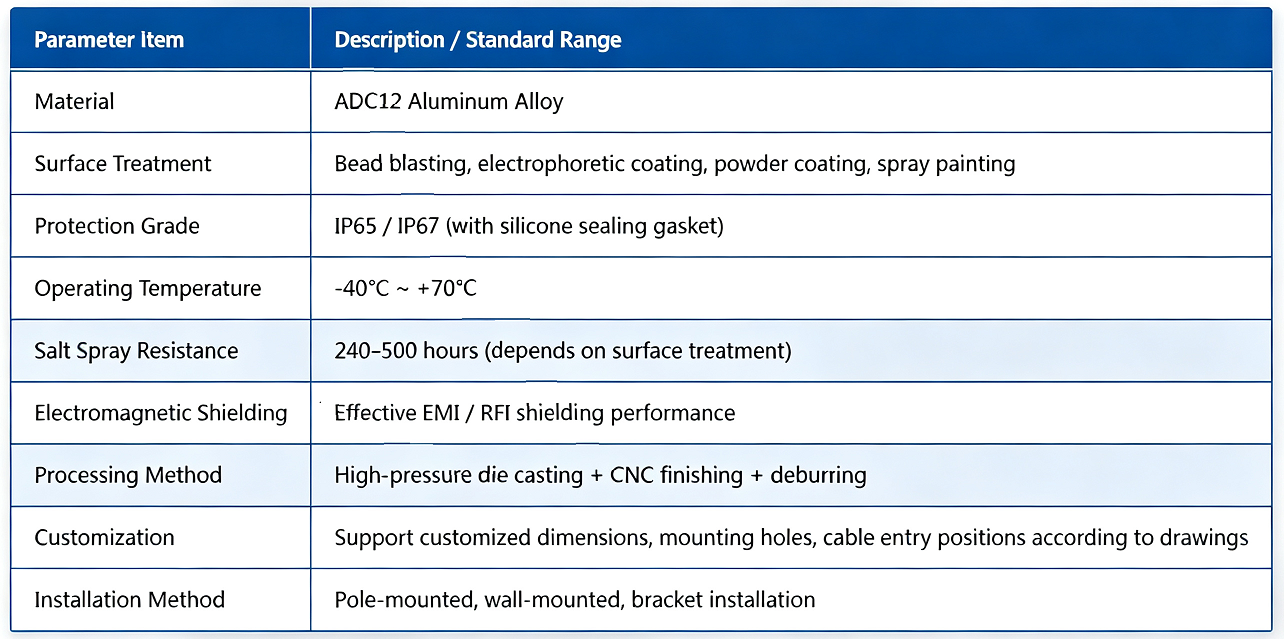

Main Technical Parameters of Aluminum Die-Cast Power Supply Enclosure



Advantages of Aluminum Die-Cast Power Supply Enclosure

✅Excellent Heat Dissipation

ADC12 aluminum alloy features high thermal conductivity. It quickly transfers heat generated by power modules outside the housing, lowers internal operating temperature and extends the service life of power supplies.

✅Lightweight & High Structural Rigidity

Lighter than iron housings while maintaining good impact resistance. Suitable for pole-mounted and wall-mounted installation, reducing load pressure on brackets and poles.

✅Effective EMI & RFI Shielding

Aluminum shell blocks electromagnetic interference. It prevents external signals from disturbing power circuits and avoids radiation interference to surrounding electronic equipment.

✅Reliable Outdoor Weather Resistance

After bead blasting, powder coating or electrophoretic treatment, the enclosure achieves strong resistance against humidity, ultraviolet rays and salt spray. It will not rust like steel boxes for long-term outdoor use.

✅High Waterproof & Dustproof Performance

Matched with silicone sealing gaskets, it can reach IP65 / IP67 protection grade to stop rainwater and dust from entering the enclosure.

✅High Integration via Die Casting

Mounting bosses, cable holes and reinforcing ribs can be formed in one piece. Reduce assembly steps and lower the risk of water leakage.

✅Flexible Customization & Stable Mass Production

We can adjust dimensions, hole positions and structures according to drawings. High-pressure die casting guarantees consistent dimensions for large-volume orders with controlled unit cost.

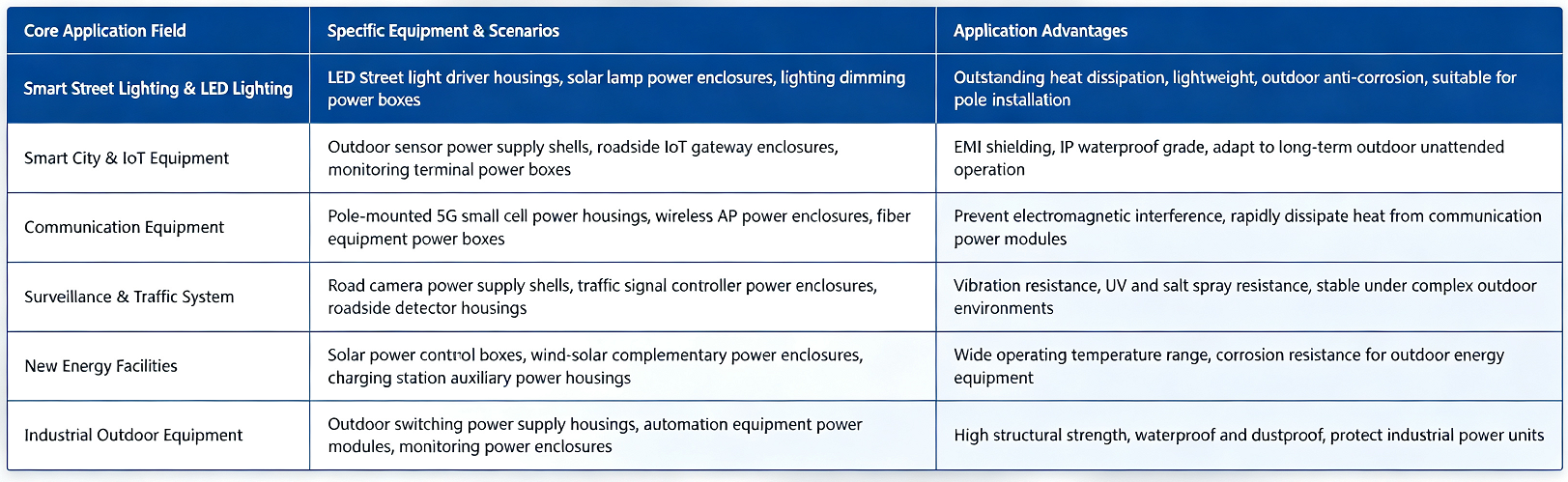

Application Fields & Scenarios of Aluminum Die-Cast Power Supply Enclosure




Frequently Asked Questions

Aluminum Die-Cast Power Supply Enclosure

Q1: What material is used for the power supply enclosure?

A: We adopt ADC12 aluminum alloy. It features good fluidity for die casting, excellent thermal conductivity and balanced mechanical performance, ideal for outdoor power housings.

Q2: Can the enclosure reach IP65 or IP67 waterproof level?

A: Yes. With precision die-cast shell matched with silicone sealing gaskets, it can achieve IP65 / IP67 waterproof and dustproof performance for outdoor usage.

Q3: What surface treatment options are available?

A: Bead blasting, electrophoretic coating, powder coating and spray painting. Different treatments provide varying salt spray resistance to adapt to humid and coastal environments.

Q4: Can you customize enclosures based on drawings or samples?

A: Absolutely. We support OEM & ODM customization. You can provide 2D drawings or 3D STEP/IGS files, we can develop new molds and produce according to your requirements.

Q5: Does the aluminum housing have electromagnetic shielding function?

A: Yes. Aluminum alloy can effectively realize EMI/RFI shielding. It prevents external signal interference and avoids radiation disturbance to surrounding electronic equipment.

Q6: What is the working temperature range of the enclosure?

A: The applicable operating temperature is -40°C ~ +70°C, suitable for most outdoor scenarios.

Q7: Is there a minimum order quantity (MOQ)?

A: We accept sample trial orders without strict MOQ. More favorable unit price for mass bulk orders.

Q8: What is the production lead time?

A: Sample lead time: 7–12 working days; Mass production lead time: 12–22 working days, depending on order quantity.

Q9: Will aluminum die-cast enclosures rust outdoors?

A: Aluminum will not rust like iron. After professional surface anti-corrosion treatment, it can withstand long-term exposure to ultraviolet rays, humidity and salt spray.

Q10: What installation methods are supported?

A: Pole-mounted, wall-mounted and bracket installation. We can reserve mounting holes according to your installation structure.

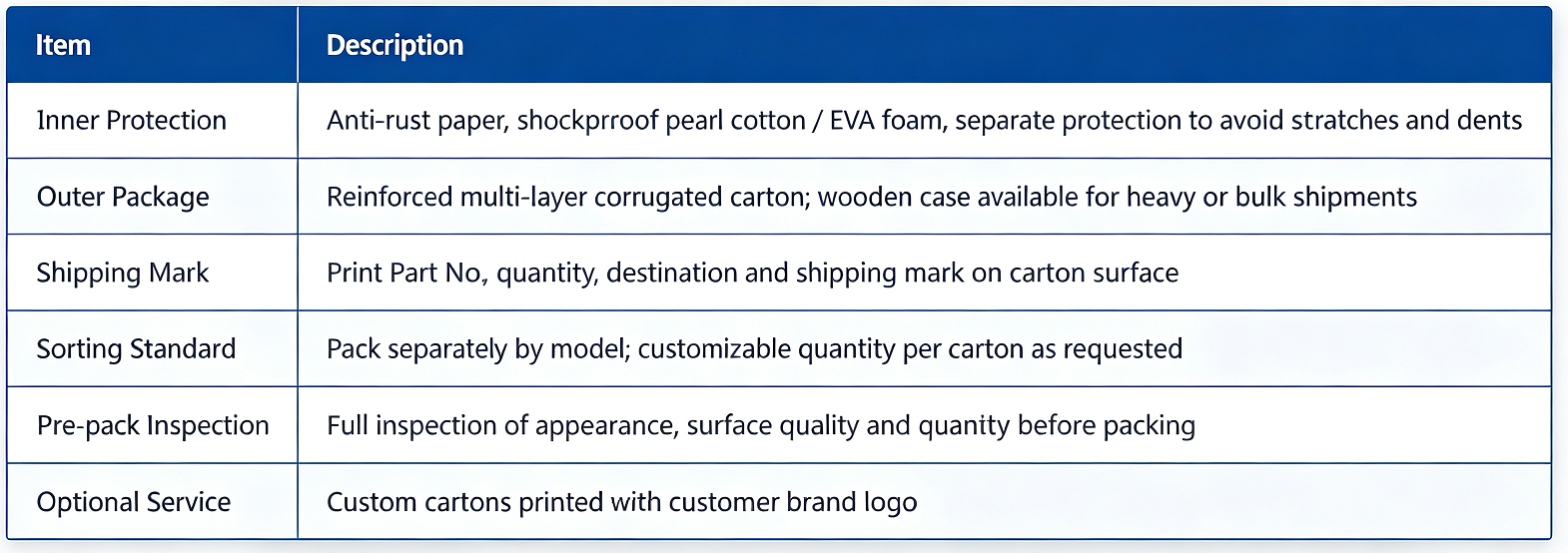

Shipping Packaging for Aluminum Die-Cast Power Supply Enclosure




Why Choose Us？

Aluminum Die-Cast Power Supply Enclosure

✅Complete One-stop Die Casting Service

We provide full-process solutions including mold development, ADC12 aluminum high-pressure die casting, CNC machining, deburring, surface treatment and finished product inspection. All production procedures are completed in-house, enabling stable quality and controllable lead time.

✅Professional Experience in Outdoor Aluminum Enclosures

We specialize in manufacturing pole-mounted & outdoor power supply housings for smart lighting, communication and smart city projects. Our engineers are proficient in waterproof structure, heat dissipation layout and pole installation requirements and can deliver professional DFM optimization suggestions.

✅Strict Standardized Quality Control

Raw material incoming inspection → casting process inspection → finished dimension & appearance inspection. We strictly control defects such as porosity, cold shut and surface flaws. Inspection reports can be supplied upon request to meet long-term outdoor application standards.

✅Flexible OEM & ODM Customization

Custom sizes, mounting hole positions, cable outlets and surface treatments are supported according to your drawings or samples. We accept small trial orders as well as mass bulk orders to match different project cycles.

✅Stable Delivery & Cost Advantage

Automated die-casting production lines guarantee consistent dimensional accuracy for mass orders. Integrated production eliminates intermediate links, helping clients lower overall procurement costs. Scientific production scheduling ensures on-time shipment.

✅Reliable Protective Packaging & Diverse Logistics Options

Anti-rust paper and shockproof foam prevent scratches and impact damage during long-distance transportation. Multiple logistics solutions are available, supporting EXW, FOB and other trade terms.

✅Timely Technical & After-sales Support

Efficient communication during sample confirmation and mass production. Our team responds quickly to solve structural and processing problems throughout the whole project cycle.
