1. Introduction: What are Zinc Alloy Die-Cast Parts?

In the precision manufacturing landscape, zinc alloy die-cast parts are essential components renowned for their high precision, durability, and versatility. These parts are produced via high-pressure die casting, a specialized process that injects molten zinc alloy into precision steel molds under extreme pressure, creating seamless, dimensionally stable components suitable for diverse industrial applications.

Zinc alloy die-cast parts stand out for their excellent castability, mechanical properties, and cost-effectiveness, making them a preferred choice for critical components like motor mounting brackets. Unlike other die-cast materials, zinc alloys (such as Zn-4%Al, Zn-4%Al-1%Cu) offer superior dimensional stability and corrosion resistance, especially after proper surface treatment. This blog explores the definition, manufacturing process, and key applications of zinc alloy die-cast parts, with a focus on motor mounting brackets—their roles, benefits, and how to choose a trusted supplier like Xinghang Precision Hardware.

2. Core Definition & Manufacturing Process of Zinc Alloy Die-Cast Parts

Zinc alloy die-cast parts are precision components made by melting zinc alloys (typically containing aluminum, copper, and other elements to enhance performance) and injecting the molten metal into a steel mold (die) under high pressure (100–1500 bar). This process ensures the final part has a smooth surface, tight tolerances, and consistent structural integrity—critical for components that require reliable performance in industrial settings.

Key steps in the manufacturing process include:

• Alloy Preparation: High-quality zinc alloys (such as Zn-4%Al-1%Cu, known for its stability and mechanical properties) are melted and purified to remove impurities (like Pb, Sn, Cd) that can cause intergranular corrosion.
• Mold Design & Preparation: Precision steel molds are designed to match the exact specifications of the part (e.g., motor mounting brackets), with cooling systems to ensure rapid solidification and dimensional accuracy.
• High-Pressure Die Casting: Molten zinc alloy is injected into the mold at high velocity and pressure, filling every detail of the cavity to create a seamless, one-piece component.
• Trimming & Finishing: Excess material (flash) is removed, and the part undergoes precision machining and surface treatment (e.g., powder coating) to enhance durability and corrosion resistance.
• Quality Control: Strict inspection processes (100% inspection) ensure the part meets dimensional tolerances, mechanical properties, and industry standards.

Zinc alloy die-cast parts are widely used in industrial applications due to their ability to balance precision, durability, and cost-effectiveness—with motor mounting brackets being one of the most critical applications.

3. Motor Mounting Bracket: Key Focus of Zinc Alloy Die-Cast Parts

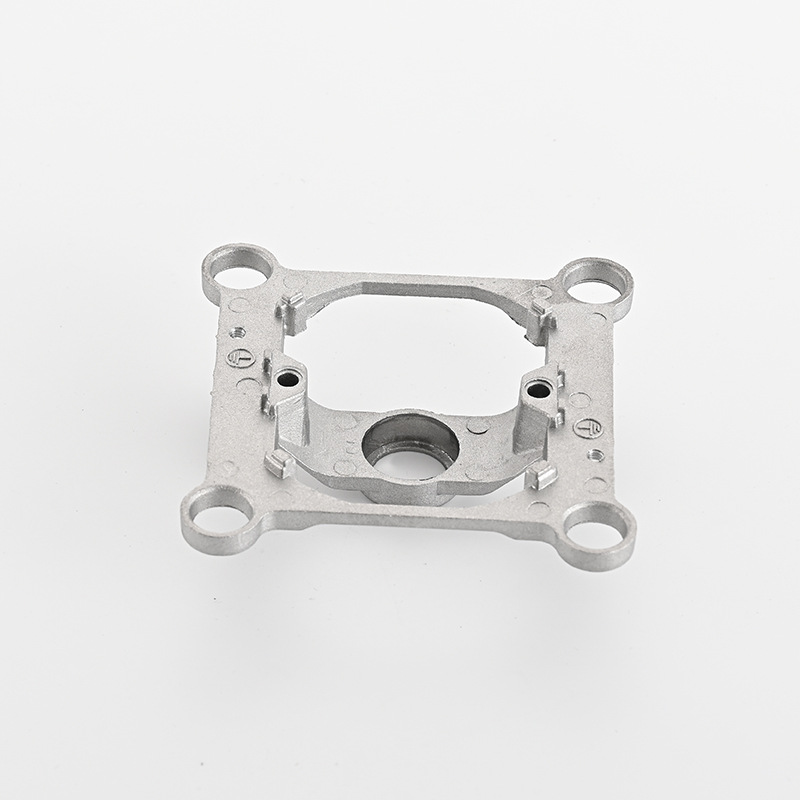

A motor mounting bracket is a critical component designed to support, secure, and stabilize electric motors in industrial equipment. As a flagship product of zinc alloy die-casting, motor mounting brackets leverage the unique properties of zinc alloys to deliver reliable performance in harsh industrial environments. At Xinghang Precision Hardware, our zinc alloy die-cast motor mounting bracket (Model XH-016) is engineered to meet the highest standards, offering professional motor support and exceptional durability for industrial applications.

Unlike motor mounting brackets made from other materials (e.g., steel, plastic), zinc alloy die-cast motor mounting brackets combine lightweight design with superior strength, making them ideal for industrial motors of all sizes. They are precision-engineered to ensure a perfect fit, reducing vibration and extending the lifespan of both the bracket and the motor.

4. Core Roles & Key Points of Zinc Alloy Die-Cast Motor Mounting Brackets

Zinc alloy die-cast motor mounting brackets play a vital role in industrial motor operation, with core roles and key points that directly impact equipment reliability and performance.

4.1 Core Roles of Motor Mounting Brackets

1. Motor Support & Stabilization: The primary role is to securely support the motor, distributing its weight evenly and preventing movement during operation. This stability reduces vibration, which can damage the motor and other connected components.
2. Vibration Damping: Zinc alloy’s inherent properties, combined with the precision die-cast structure, help absorb and dampen vibrations generated by the motor, reducing noise and preventing premature wear.
3. Alignment & Positioning: Motor mounting brackets ensure the motor is aligned correctly with other components (e.g., gears, shafts), ensuring smooth operation and reducing friction.
4. Protection: They protect the motor from external hazards (e.g., dust, moisture, impact) and prevent damage to the motor’s housing and internal components.

4.2 Key Points of Zinc Alloy Die-Cast Motor Mounting Brackets

• Precision Dimensional Accuracy: Tight tolerances (as per customer requirements) ensure the bracket fits perfectly with the motor and other equipment, eliminating misalignment issues.
• Structural Integrity: High-pressure die casting creates a dense, uniform zinc alloy structure that resists deformation under heavy loads and harsh operating conditions.
• Corrosion Resistance: Zinc alloys naturally resist corrosion, and additional surface treatments (e.g., powder coating) further enhance this property, making the bracket suitable for indoor and outdoor industrial environments.
• Compatibility: Designed to fit a wide range of industrial motor sizes and types, with customization options to meet specific application needs.

5. Unique Benefits of Zinc Alloy Die-Cast Motor Mounting Brackets

Zinc alloy die-cast motor mounting brackets offer distinct advantages over brackets made from other materials, making them the preferred choice for industrial applications. These benefits stem from the unique properties of zinc alloys and the high-pressure die casting process:

• Superior Precision & Dimensional Stability: Zinc alloys have excellent castability, allowing for complex geometries and tight tolerances. The die casting process ensures consistent dimensions across all parts, eliminating fitment issues and reducing assembly time. Zinc alloys like Zn-4%Al-1%Cu also offer excellent dimensional stability during natural and artificial aging, ensuring long-term performance.
• Lightweight & High Strength: Zinc is lighter than steel, making the bracket easy to install and transport, while its high strength-to-weight ratio ensures it can support heavy industrial motors without deformation.
• Exceptional Durability & Corrosion Resistance: Zinc alloys are naturally corrosion-resistant, and the dense structure from die casting prevents moisture and dust from penetrating the bracket. This extends the bracket’s lifespan, reducing maintenance and replacement costs.
• Cost-Effective for Mass Production: Die casting is a high-efficiency process with minimal material waste, reducing per-unit costs for motor mounting brackets—ideal for large-scale industrial orders. Zinc alloys are also cost-competitive compared to other die-cast materials.
• Excellent Vibration Damping: Zinc’s inherent properties help absorb motor vibrations, reducing noise and preventing damage to the motor and other equipment. This is critical for industrial motors that operate 24/7.
• Customization Flexibility: The die casting process supports custom designs, allowing manufacturers to tailor the bracket’s size, shape, mounting points, and features to fit specific industrial motor requirements.

6. Industrial Applications of Zinc Alloy Die-Cast Motor Mounting Brackets

Zinc alloy die-cast motor mounting brackets are versatile and widely used across various industrial sectors, where reliable motor support and stability are critical. Key applications include:

6.1 Manufacturing Machinery

They are used to mount motors in conveyor systems, robotic arms, assembly lines, and packaging machinery. These brackets ensure motors remain stable during high-speed operation, reducing downtime and maintenance costs.

6.2 Automotive Industry

In the automotive sector, motor mounting brackets are used for electric motors in vehicles (e.g., electric power steering, HVAC systems). Their lightweight design helps improve fuel efficiency, while their durability ensures reliable performance in harsh automotive environments. The global market for motor mounting brackets in automotive applications is projected to grow steadily in the coming years.

6.3 Industrial Equipment

They are essential for motors in pumps, compressors, generators, and control panels. These brackets provide stable support, reduce vibration, and protect motors from dust and moisture, ensuring continuous operation in factories, power stations, and processing facilities.

6.4 Renewable Energy Systems

Zinc alloy die-cast motor mounting brackets are used in wind turbines, solar panel systems, and other renewable energy equipment. Their corrosion resistance and durability make them suitable for outdoor environments, where they support motors used in energy generation and distribution.

7. Xinghang Precision Hardware: Top-Tier Zinc Alloy Die-Cast Parts Supplier (Model XH-016)

As a leading manufacturer of zinc alloy die-cast parts, Xinghang Precision Hardware specializes in producing high-quality motor mounting brackets (Model XH-016) for industrial applications. Our professional motor support and zinc alloy die casting services ensure durable, high-precision components that meet the most demanding industrial performance requirements. Below is the product overview for our Model XH-016 motor mounting bracket:

7.1 Product Overview (Model XH-016)

7.2 Our Advantages as a Zinc Alloy Die-Cast Parts Supplier

• Integrated Production Capabilities: We integrate R&D design, mold manufacturing, high-pressure die casting, precision machining, surface treatment, and assembly into a one-stop service—ensuring full control over every step of motor mounting bracket production.
• Advanced Equipment & Technology: Equipped with high-precision die casting machines (300–2000 tons) and automated production lines, we ensure consistent quality and efficiency for our zinc alloy die-cast parts, including Model XH-016.
• Strict Quality Control: Backed by ISO9001/TS16949/RoHS/ISO14001 certifications, we implement 100% inspection throughout production, keeping our defect rate below 0.5%—far below the industry average. We also ensure our zinc alloys are free from harmful impurities to prevent corrosion.
• Customization Expertise: Our R&D team specializes in custom zinc alloy die-cast motor mounting brackets, tailoring size, shape, mounting points, and surface treatment to meet your unique industrial application needs.
• Timely Delivery & After-Sales Service: We offer a lead time of 10–15 days for custom motor mounting brackets (faster than the industry average) and provide dedicated after-sales support for technical issues and maintenance.

8. Expert Insights on Zinc Alloy Die-Cast Parts & Motor Mounting Brackets

To gain deeper insights into the value of zinc alloy die-cast parts and motor mounting brackets, we interviewed Dr. Michael Carter, a senior materials engineer with over 20 years of experience in non-ferrous metal casting (including zinc alloy die casting) and industrial component design, and a consultant for leading manufacturing enterprises.

“Zinc alloy die-cast parts are a cornerstone of modern industrial manufacturing, and motor mounting brackets are a perfect example of their versatility and reliability,” says Dr. Carter. “Zinc alloys—especially formulations like Zn-4%Al-1%Cu—offer exceptional dimensional stability and corrosion resistance, which are critical for motor brackets that must withstand constant vibration and harsh industrial environments. The high-pressure die casting process ensures these brackets are precise, durable, and cost-effective, making them superior to steel or plastic alternatives.”

Dr. Carter also emphasized: “The motor mounting bracket industry is growing alongside the industrial and automotive sectors, with demand for high-precision, custom components on the rise. Suppliers like Xinghang, which combine advanced die casting technology, strict quality control, and customization expertise, are well-positioned to meet this demand. Zinc alloy die-cast motor mounting brackets offer a unique balance of strength, precision, and cost—they are not just components, but investments in equipment reliability and long-term operational efficiency. As the market for motor mounting brackets expands globally, the focus on quality and customization will only increase.”

9. FAQs About Zinc Alloy Die-Cast Parts & Motor Mounting Brackets

Q1: What is the difference between zinc alloy die-cast parts and aluminum die-cast parts?

A: Zinc alloy die-cast parts are denser, offer better dimensional stability, and have superior vibration damping compared to aluminum die-cast parts. Aluminum parts are lighter but less rigid, while zinc parts are ideal for components that require high precision and vibration resistance (like motor mounting brackets). Zinc alloys also have better castability for complex geometries and are more cost-effective for small to medium-sized parts.

Q2: What zinc alloys are used for die-cast motor mounting brackets?

A: We use high-performance zinc alloys such as Zn-4%Al, Zn-4%Al-1%Cu, and Zn-4%Al-2.7%Cu for our motor mounting brackets. These alloys offer excellent mechanical properties, dimensional stability, and corrosion resistance—ideal for industrial applications. Zn-4%Al-1%Cu is particularly preferred for its stability and resistance to intergranular corrosion.

Q3: Can zinc alloy die-cast motor mounting brackets be customized?

A: Yes. At Xinghang Precision Hardware, we specialize in custom zinc alloy die-cast motor mounting brackets (Model XH-016 can be tailored). We can adjust size, shape, mounting points, surface treatment, and tolerances to fit your specific industrial motor and equipment needs.

Q4: Are zinc alloy die-cast motor mounting brackets corrosion-resistant?

A: Yes. Zinc alloys naturally resist corrosion, and we also offer optional surface treatments (e.g., powder coating) to further enhance corrosion resistance. This makes our motor mounting brackets suitable for both indoor and outdoor industrial environments, even in harsh conditions.

Q5: What is the service life of a zinc alloy die-cast motor mounting bracket?

A: With proper maintenance, zinc alloy die-cast motor mounting brackets can last 10–15 years, depending on the operating environment. Indoor industrial brackets typically last 12–15 years, while outdoor brackets (with weather-resistant treatments) last 10–12 years—significantly longer than plastic brackets (5–8 years).

Q6: How long does it take to produce custom zinc alloy die-cast motor mounting brackets?

A: The lead time depends on the complexity of the custom design. For simple customizations, lead time is 7–10 days; for complex designs (e.g., custom geometries, special mounting features), lead time is 10–15 days—faster than the industry average of 15–20 days. We also offer expedited production for urgent orders.

Q7: Why choose Xinghang Precision Hardware for zinc alloy die-cast motor mounting brackets?

A: We are a top-tier zinc alloy die-cast parts manufacturer with integrated production capabilities, strict quality control, ISO certifications, and rich customization experience. Our Model XH-016 motor mounting bracket is precision-engineered, durable, and cost-effective, and we offer timely delivery and reliable after-sales service—making us your trusted partner for industrial motor support solutions.

10. Conclusion: Industry Trends & How to Choose a Quality Hardware Supplier

10.1 Trends in the Motor Mounting Bracket & Zinc Alloy Die-Cast Industry

The motor mounting bracket industry, driven by the growth of the industrial and automotive sectors, is poised for steady growth in the coming years. Key trends shaping the industry include: First, increasing demand for high-precision, custom motor mounting brackets to fit unique industrial equipment designs. Second, the shift toward lightweight, durable materials like zinc alloys, which offer superior performance and cost-effectiveness. Third, the adoption of automation in die casting processes, improving production efficiency and product consistency. Fourth, growing emphasis on sustainability, with zinc’s recyclability making it an eco-friendly choice for manufacturers. Finally, the global expansion of industrial and automotive markets is driving increased demand for reliable motor mounting brackets, especially in emerging economies.

10.2 How to Choose a Quality Hardware Processing Supplier

Selecting the right supplier for zinc alloy die-cast motor mounting brackets is critical to ensuring product quality, reliability, and cost-effectiveness. Key factors to consider include:

• Integrated Production Capabilities: Choose a supplier with one-stop services (R&D, die casting, machining, surface treatment) to ensure full control over the production process and consistent quality for motor mounting brackets.
• Relevant Certifications: Ensure the supplier has ISO9001/TS16949/RoHS/ISO14001 certifications, guaranteeing product quality and environmental compliance.
• Specialization in Zinc Alloy Die-Cast Parts: Look for a supplier with experience in producing zinc alloy die-cast motor mounting brackets for industrial applications, as this ensures they understand your specific needs and the properties of zinc alloys.
• Customization Expertise: Verify the supplier offers custom design and prototype testing to tailor motor mounting brackets to your unique industrial motor requirements.
• Quality Control & Equipment: Choose a supplier with advanced die casting equipment and strict quality control processes (100% inspection) to ensure low defect rates and consistent performance.
• After-Sales Service: A reliable supplier should offer timely technical support, product replacement, and maintenance advice for your motor mounting brackets.

10.3 Choose Xinghang Precision Hardware: Your Trusted Partner

For businesses seeking a top-tier zinc alloy die-cast parts manufacturer specializing in high-quality motor mounting brackets, Xinghang Precision Hardware is your ideal choice. We embody all the key qualities of a trusted supplier: integrated production capabilities, advanced equipment, strict quality control, ISO certifications, and strong customization expertise. Our motor mounting bracket (Model XH-016) is precision-engineered to meet the industrial performance needs of manufacturing, automotive, and renewable energy sectors, offering exceptional durability, precision, and cost-effectiveness.

We are committed to delivering superior products and services, with timely delivery and reliable after-sales support. Whether you need standard motor mounting brackets or fully customized solutions, we have the experience and capability to exceed your expectations.
