1. Introduction to High Pressure Die Casting (HPDC)

High Pressure Die Casting (HPDC) is one of the most efficient and precise metal forming manufacturing processes in the modern hardware and precision machinery industry. Different from traditional sand casting and gravity die casting, HPDC adopts high-speed filling and high-pressure solidification molding logic, which can mass-produce high-precision, high-complexity, and high-surface-quality metal parts. It has become the mainstream process for aluminum, zinc, magnesium, and copper alloy precision components worldwide.

With the booming demand for lightweight and miniaturized industrial parts, the HPDC process has replaced many traditional metal processing methods and is widely used in automotive, electronics, home appliances, and industrial equipment fields. Its core value lies in balancing mass production efficiency, dimensional accuracy, and production cost control.

2. General Technical Parameters of HPDC Process

The stable and standardized parameter system is the core guarantee for high-quality HPDC production. The following are the universal industry standard parameters for the high pressure die casting process, covering pressure, speed, cycle time, wall thickness, and applicable materials:

3. Working Principle of High Pressure Die Casting

3.1 Core Molding Logic

The working principle of the high pressure die casting process is based on high-pressure forced filling and pressure-maintaining rapid solidification. The whole process is completed in a closed precision steel mold. The molten metal alloy is injected into the mold cavity at an extremely high speed and pressure through the hydraulic injection system of the die-casting machine. Under continuous pressure, the molten metal fills every tiny gap of the mold, then cools and solidifies rapidly to form finished parts with consistent shapes and sizes.

3.2 Complete Process Steps

Step 1: Mold Preheating & Spraying

Preheat the precision steel mold to a constant temperature and spray a professional release agent to prevent part adhesion and ensure smooth demolding while optimizing the surface finish of castings.

Step 2: Alloy Melting & Quantitative Feeding

Melt the qualified metal alloy raw materials at a constant temperature, and quantitatively transport the molten metal to the injection chamber to ensure uniform feeding for each product.

Step 3: High-Pressure High-Speed Injection

The hydraulic plunger pushes the molten metal into the closed mold cavity at super-high speed and pressure to complete instantaneous filling, realizing the molding of complex structural features.

Step 4: Pressure Maintaining & Rapid Cooling

Maintain continuous high pressure until the metal is completely solidified, effectively eliminating internal pores, shrinkage cavities and other defects, and improving the compactness and mechanical strength of parts.

Step 5: Mold Opening & Product Demolding

After cooling and molding, the mold is opened automatically, and the ejector pin pushes out the finished casting. After trimming and post-processing, the qualified finished product is obtained.

4. Core Advantages of High Pressure Die Casting Process

4.1 Ultra-High Production Efficiency, Suitable for Mass Production

Compared with traditional casting processes, HPDC has an extremely short production cycle. A single part can be molded in 30–90 seconds, and automated assembly line production can be realized. It can produce tens of thousands of qualified parts every day, which completely meets the large-scale and batch production needs of modern industrial manufacturing and greatly shortens the product delivery cycle.

4.2 Excellent Dimensional Accuracy & Surface Quality

Benefiting from high-pressure full cavity filling and precision mold matching, HPDC castings have ultra-high dimensional accuracy with a tolerance of ±0.05mm. The product surface is smooth and flat with no obvious burrs, and the surface roughness is far lower than that of sand casting. Most parts can be used directly after simple trimming, reducing subsequent CNC processing procedures.

4.3 Capable of Molding Complex & Thin-Wall Structures

The high-speed filling performance of HPDC allows molten metal to flow into tiny mold gaps, realizing the integrated molding of ultra-thin walls, deep cavities, irregular curves, and complex internal structures. It solves the molding difficulties that traditional processes cannot overcome, and supports the lightweight and miniaturized design of industrial parts.

4.4 Dense Structure & Stable Mechanical Properties

Continuous high-pressure solidification effectively squeezes out internal gas and gaps, making the internal structure of the casting dense and uniform. The finished parts have high hardness, good tensile strength and wear resistance, stable mechanical performance, and long service life, which can adapt to high-strength working environments.

4.5 Significant Comprehensive Cost Advantages

Although the initial mold investment is slightly higher, HPDC has extremely low unit cost in mass production. It saves raw material waste, reduces manual operation and post-processing costs, and has a high yield rate. The larger the production batch, the more prominent the cost advantage, which is very suitable for long-term bulk order production.

4.6 Good Material Adaptability & Strong Scalability

The process is compatible with aluminum, zinc, magnesium, copper and other common alloy materials, covering most precision hardware product fields. It can flexibly adjust process parameters according to product design requirements to meet the customized production needs of different sizes, structures and performance standards.

5. Main Application Fields & Scenarios of HPDC

5.1 Automotive Industry (Core Application)

HPDC is widely used in automotive lightweight parts, including automotive engine parts, chassis brackets, gearbox shells, new energy vehicle battery housings, motor end covers, and automotive electronic structural parts. Its lightweight and high-strength characteristics help reduce vehicle weight and improve energy efficiency.

5.2 Consumer Electronics & 3C Industry

It is used for precision structural parts of mobile phones, computers, household appliances, and smart devices, such as equipment shells, heat dissipation parts, and internal support brackets. The process meets the strict requirements of 3C products for high precision, thin wall, and beautiful appearance.

5.3 Industrial Equipment & Hardware Tools

Various mechanical equipment valve bodies, pump bodies, tool accessories, and precision hardware connectors adopt HPDC technology, relying on its stable structural performance and high wear resistance to adapt to long-term industrial operation scenarios.

5.4 New Energy & Communication Industry

New energy photovoltaic accessories, energy storage equipment structural parts, communication base station precision parts, and sensor shells all use high-pressure die casting process, which meets the industry's high requirements for product consistency and durability.

6. Industry Expert Viewpoints on HPDC Technology

Senior Manufacturing Engineer & Industry Consultant Mr. Zhang (12-year precision casting industry experience):

"In the field of precision hardware manufacturing, high pressure die casting is no longer an optional process but a standard configuration for mass precision production. Many manufacturers still rely on traditional machining and low-pressure casting, which have low efficiency, high material loss and unstable product consistency.

The core competitiveness of HPDC lies in its perfect balance of efficiency, precision and cost. With the upgrading of industrial manufacturing and the popularization of lightweight products, high-precision, high-efficiency and low-consumption HPDC process will completely replace backward processes. For downstream purchasers, choosing a professional HPDC manufacturer is the key to improving product quality and controlling overall costs."

7. Professional HPDC Manufacturer: Xinghang Precision Hardware

Xinghang Precision Hardware is a professional high-pressure die casting manufacturer integrating mold development, die-casting production, precision processing and surface treatment. We focus on customized HPDC precision parts production for global customers, covering aluminum alloy, zinc alloy, magnesium alloy and other precision casting products.

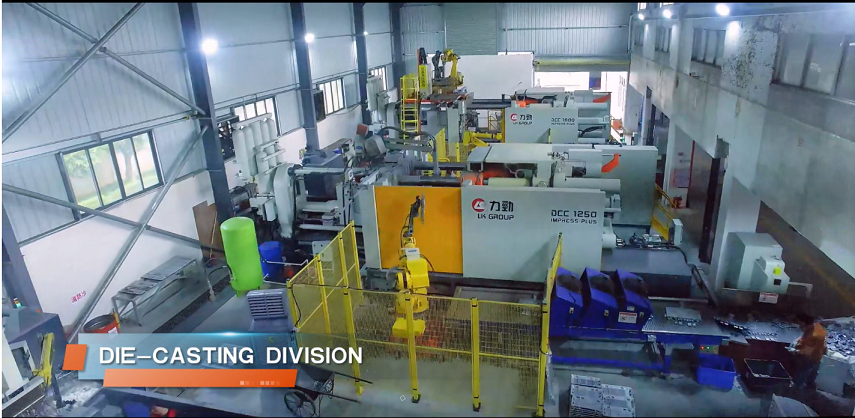

The company has advanced automated die-casting production lines, professional R&D and technical teams, and a complete quality inspection system. We strictly control every link from mold design, parameter debugging, mass production to post-processing to ensure that each batch of products meets international precision standards.

Our Core Advantages & Preferential Policy:

• High-quality guarantee: Strictly implement HPDC standard process parameters, with stable product precision and high yield rate
• Customized service: Support OEM/ODM customized production according to customer drawings and samples
• Batch preferential activity: The more you order in bulk, the more discounts you get. Long-term bulk customers can enjoy exclusive low prices and priority delivery rights
• One-stop service: Provide full-process services from mold opening, casting, processing to surface oxidation, sandblasting and painting

Contact Us

Mobile / Whatsapp / WeChat: +86 18819502691

Email: liqine@xinghangcn.com

8. FAQ About High Pressure Die Casting Process

Q1: What is the difference between HPDC and low-pressure die casting?

HPDC adopts high pressure and high speed filling, with high production efficiency, high dimensional accuracy and suitable for mass production; low-pressure die casting has low filling speed and pressure, low efficiency, low precision, and is mostly used for small-batch and low-precision parts production.

Q2: What defects are easy to avoid with HPDC process?

Standardized HPDC production can effectively avoid common defects such as incomplete filling, surface burrs, internal pores, shrinkage cavities and deformation, ensuring high consistency of finished products.

Q3: Is HPDC suitable for small-batch customized orders?

HPDC is more advantageous for medium and large batches. For small-batch orders, we will optimize the process plan for customers to balance cost and quality. Meanwhile, our batch discount policy can help customers reduce costs for expanded orders.

Q4: What surface treatments can be matched with HPDC parts?

HPDC castings can support oxidation, sandblasting, electroplating, painting, polishing and other surface treatments, which can meet the appearance and anti-corrosion requirements of different industries.

Q5: What is the delivery cycle of Xinghang Precision Hardware?

We have automated production lines and sufficient raw material inventory. The conventional sample cycle is 3–7 days, and the mass production delivery cycle is 7–15 days. Bulk orders enjoy priority delivery service.

9. Industry Development Trends & How to Choose a Qualified Hardware Supplier

9.1 HPDC Industry Development Trends

With the rapid development of new energy vehicles, smart home appliances and 5G communication industries, the high-pressure die casting industry presents three major development trends: high precision & lightweight, intelligent automated production, and green & low-consumption manufacturing. Customers have higher and higher requirements for product precision, surface quality and batch consistency, and backward manual and low-precision casting processes will be gradually eliminated. Customized, high-efficiency and high-quality HPDC manufacturing services will become the mainstream of the market.

9.2 How to Choose a Qualified HPDC Hardware Processing Supplier

First, verify the supplier's process technical capability. A qualified supplier must have standardized HPDC parameter control system, professional mold R&D capability and complete post-processing supporting facilities.

Second, check the quality control system. Stable product yield rate and batch consistency are the core indicators to measure supplier strength, avoiding quality fluctuations affecting customer delivery.

Third, focus on cost performance and service policy. Excellent suppliers can provide customized solutions and flexible batch discount policies to help customers reduce long-term procurement costs.

Fourth, confirm the after-sales and delivery capability. Professional manufacturers have perfect delivery management and after-sales response mechanisms to ensure stable customer cooperation.

10. Conclusion

The high pressure die casting (HPDC) process has become the core process of modern precision hardware manufacturing by virtue of its advantages of high efficiency, high precision, complex structure molding capability and low batch cost. It covers almost all high-precision metal parts production scenarios such as automobile, electronics, new energy and industrial equipment, and has irreplaceable market advantages compared with traditional processes.

As the industry continues to upgrade, high-precision, intelligent and customized HPDC production will usher in broader market prospects. Choosing a professional and reliable HPDC supplier is the key to product quality and cost control. Xinghang Precision Hardware relies on mature process technology, perfect production system and favorable batch discount policy to provide global customers with one-stop high-quality high-pressure die casting customized processing services. We welcome new and old customers to consult and cooperate for long-term win-win development.
