What are the benefits of aluminum die casting battery enclosures?

Table of Contents

1. Introduction
2. Core advantages of ADC12 aluminum die casting outdoor battery enclosure
3. General parameter & specification table for outdoor battery enclosure
4. Main functions of aluminum die casting battery boxes
5. Application scenarios & market price analysis
6. Expert opinion on die-cast aluminum battery housings
7. Common practical problems during application & solutions
8. Industry FAQ
9. Conclusion: industry trend & tips to select qualified hardware supplier
10. About Xinghang Precision Hardware

1.Introduction

Outdoor energy storage batteries work in harsh environments with fluctuating temperature, rain, dust, vibration and ultraviolet exposure. The battery enclosure acts as the first safety barrier to protect lithium cells, BMS and internal wiring. Among multiple manufacturing options, ADC12 aluminum die casting has become the preferred manufacturing process for outdoor battery enclosures. This blog explains the core benefits, technical parameters, real application challenges, market price and supplier selection advice for aluminum die casting battery enclosures, especially for outdoor energy storage projects.

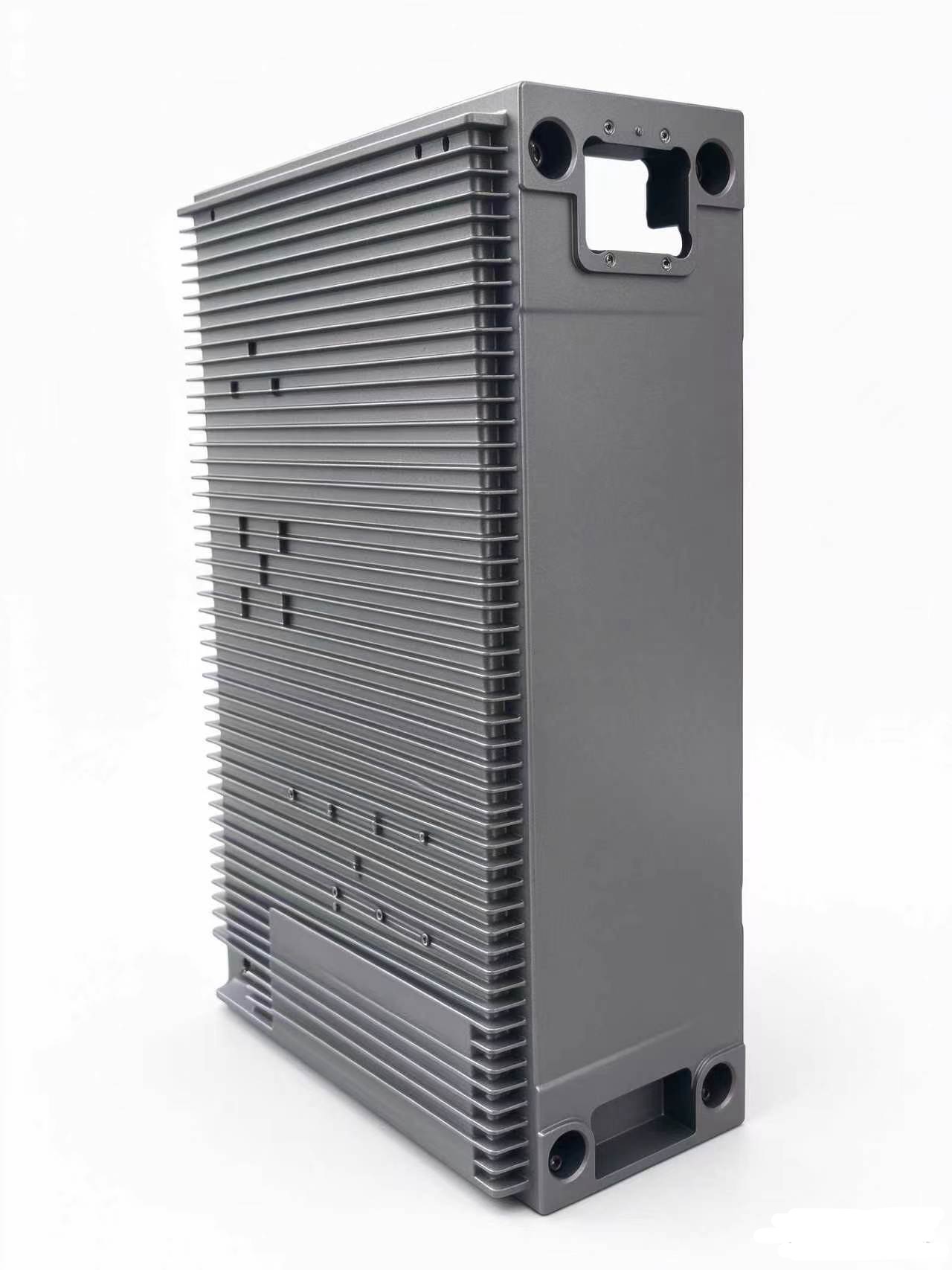

2.Core advantages of ADC12 aluminum die casting outdoor battery enclosure

Superior heat dissipation performance

ADC12 aluminum alloy has good thermal conductivity. The integrated die-cast structure can integrate heat dissipation ribs in one forming step. It quickly transfers heat generated by battery packs out of the cabinet, reducing thermal runaway risk. Compared with plastic enclosures, aluminum die casting housings avoid heat accumulation in high-load outdoor operation.

Excellent mechanical strength & impact resistance

One-piece high-pressure die casting forms integrated reinforcing ribs inside the enclosure. It provides high rigidity and anti-deformation capacity. It can resist external impact, vibration during transportation and installation. This feature is critical for outdoor sites such as remote solar stations and mobile power stations.

Reliable weather & corrosion resistance for outdoor use

With surface treatments including powder coating, painting and passivation, ADC12 die cast enclosure achieves strong anti-rust, UV and salt spray resistance. It supports high IP waterproof and dustproof rating. The enclosure keeps stable performance under -40℃ ~ +125℃ outdoor temperature cycling.

High design freedom for complex integrated structure

Die casting can form complex internal bosses, ribs, mounting lugs and sealing grooves in a single casting. It reduces assembly parts, cuts welding joints and lowers leakage risk. This one-piece forming reduces subsequent welding and assembly labor cost for mass orders.

Lightweight & recyclable

ADC12 aluminum is lighter than steel while maintaining high mechanical performance, lowering overall battery system weight and transportation cost. Aluminum material is fully recyclable, which meets carbon reduction requirements of renewable energy industry.

Stable dimensional accuracy for mass production

After die casting, parts can be processed by CNC five-axis machining. Tight tolerance control ensures good matching of sealing face, mounting holes and connector cutouts. It guarantees consistent quality in large-batch production.

3.General parameter & specification table for outdoor battery enclosure

4.Main functions of aluminum die casting battery boxes

Physical protection

Prevent collision, extrusion, sharp object puncture, avoid physical damage to lithium battery cells inside.

Thermal management

Conduct internal heat outwards, control battery operating temperature, reduce local overheating risk.

Environmental sealing

Block rainwater, dust, moisture and salt fog, prevent short circuit and corrosion of internal electronic components.

Electromagnetic shielding

Aluminum alloy metal shell suppresses electromagnetic interference, protects BMS and communication modules.

Structural mounting

Integrated mounting brackets and reserved holes simplify battery pack assembly and site installation.

5.Application scenarios & market price analysis

Main market application fields

• Outdoor residential solar energy storage battery systems
• Commercial & industrial outdoor energy storage cabinets
• Mobile portable power station for camping, construction site, emergency power supply
• Telecommunication base station backup power battery enclosures
• Off-grid photovoltaic power station battery packs
• Low-speed electric equipment and outdoor robot power packs

Market price overview

The price of ADC12 aluminum die casting outdoor battery enclosure varies significantly by size, wall thickness, structure complexity, surface treatment and order quantity. Simple small enclosures: unit price starts from USD 8–35. Medium-size outdoor energy storage boxes: USD 35–120 per piece. Large integrated battery trays with complex rib structure: USD120–300+.

Price is strongly affected by aluminum raw material price, mold cost, CNC machining hours and inspection requirement. Bigger order quantity brings better unit price discount, which is a core advantage of mass die casting production. For prototype or small batch orders, mold cost accounts for higher proportion of total expense.

6.Expert opinion on die-cast aluminum battery housings

An energy storage hardware manufacturing expert commented: "For outdoor battery projects, many buyers used to choose sheet metal welded boxes or plastic shells. Sheet metal has many welding seams, which easily causes water leakage and corrosion in coastal high-salt areas. Plastic shells cannot handle high heat and have poor anti-impact performance. ADC12 aluminum die casting solves these pain points. Integrated forming minimizes seam risks. With proper surface treatment, it can serve for 8–15 years outdoors. The key is to pick a supplier with complete inspection tools, including X-ray flaw detection and CMM, to detect internal casting porosity and guarantee dimension consistency, especially for high-volume energy storage orders."

7.Common practical problems during application & solutions

Problem 1: Porosity inside casting

Cause: improper die casting process, gas trapped during filling. Solution: Use X-ray flaw detector for full inspection. Optimize mold exhaust system. Xinghang Precision Hardware carries out non-destructive testing to avoid hidden internal defects.

Problem 2: Poor sealing and water leakage after assembly

Cause: uneven sealing surface, dimensional deviation of mounting holes. Solution: Adopt five-axis CNC machining on the sealing surface. Strict dimension verification with CMM coordinate measuring machine, ensure flatness of mating face.

Problem 3: Surface coating peeling under long outdoor UV exposure

Cause: unsuitable coating material or poor pre-treatment. Solution: Select outdoor grade powder coating, complete surface pre-cleaning and passivation before coating.

Problem 4: High cost for customized small batches

Cause: die casting mold cost is fixed. Solution: Communicate with supplier for DFM drawing analysis at early design stage, optimize structure to reduce machining cost. Plan batch production to enjoy volume discount.

8.Industry FAQ

Q1: Why choose ADC12 alloy for outdoor battery enclosures? A1: ADC12 has excellent fluidity for thin-wall and complex structure casting, balanced strength, heat dissipation and cost performance, which is widely verified in energy storage outdoor enclosure projects.

Q2: Can aluminum die casting battery box achieve IP67 waterproof? A2: Yes. IP rating is decided by enclosure structure, sealing groove design and rubber gasket. ADC12 die cast housing provides stable base structure to reach IP67 with proper design.

Q3: What tolerance can your factory achieve for custom die cast parts? A3: With five-axis CNC equipment and CMM three-coordinate measuring instrument, we review customer drawings in advance. We can meet strict dimension tolerance requirements for most battery enclosure projects.

Q4: What inspection do you carry out before shipment? A4: We use X-ray flaw detector to check internal casting defects, CMM for dimension inspection, salt spray test for coating samples, visual inspection and function check.

Q5: Is custom design available? What is MOQ? A5: Yes, we provide full OEM & ODM custom die casting service. MOQ is flexible, and unit price becomes more competitive when order quantity increases.

9.Conclusion: industry trend & tips to select qualified hardware supplier

Development trend of custom die casting industry

Global outdoor energy storage market keeps expanding. Custom aluminum die cast enclosures are moving toward integration, lightweight, high heat dissipation and low carbon. Customers require fewer assembly parts, higher safety standard and stricter non-destructive inspection. Suppliers with full-chain capacity including mold making, die casting, precision CNC machining and complete lab testing will gain bigger advantages in new energy supply chain.

Tips to choose a high-quality hardware processing supplier

1. Check self-owned factory: avoid trading intermediaries. Direct factory controls production schedule, quality and cost better.
2. Verify complete equipment: confirm if the factory owns X-ray flaw detector, five-axis CNC machine and CMM coordinate measuring equipment.
3. Pre-project drawing analysis: good manufacturers provide DFM drawing review to optimize your design before mold opening.
4. Complete quality inspection system: non-destructive testing, dimension test, surface performance test should be available.
5. Flexible pricing policy: prefer suppliers offering volume discount for bulk orders.

10.About Xinghang Precision Hardware

Xinghang Precision Hardware is a professional manufacturer for customized aluminum die casting products, especially outdoor ADC12 aluminum die casting battery enclosures. We own self-owned factory covering nearly 10,000 square meters. Our workshop is equipped with X-ray flaw detector, five-face five-axis CNC machines and CMM three-coordinate measuring instruments. We are confident in strict tolerance control. Our engineering team supports drawing analysis, feasibility evaluation to meet your dimension and structure requirements.

We provide one-stop OEM & ODM service for various die-cast hardware shells for energy storage, electronics and industrial equipment. Our price and quality control are highly competitive. The more quantity you order in bulk, the more discount you can get.
