What is a Die-Cast Aluminum LED Cabinet? Ultimate Guide to ADC12 Cast Aluminum Boxes
Table of Contents
1. Basic Overview of Die-Cast Aluminum LED Cabinet
1.1 Definition of Cast Aluminum Boxes for LED Displays

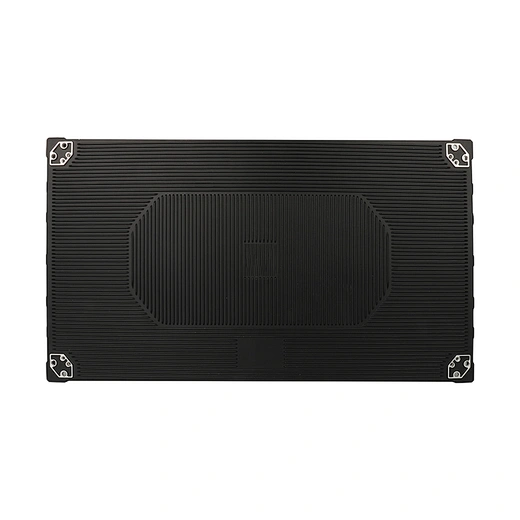

A die-cast aluminum LED cabinet is a high-precision, durable industrial enclosure specially designed for LED display screens, manufactured through high-pressure die-casting technology and secondary precision finishing. As the core carrier of LED display modules, control systems and power components, cast aluminum boxes integrate structural support, heat dissipation, protection and assembly functions, serving as the essential housing for indoor and outdoor LED display equipment.
Different from traditional iron and plastic LED cabinets, die-cast aluminum LED cabinets adopt one-piece integral forming process, featuring compact structure, no assembly gaps and stable overall performance. They can be customized in size, structure and surface treatment according to different LED screen specifications and usage scenarios, fully meeting the personalized needs of commercial, industrial and stage display equipment.
1.2 Core Raw Material: ADC12 Aluminum Alloy
Professional custom cast aluminum LED boxes universally adopt ADC12 (AlSi9Cu3) aluminum alloy as the exclusive raw material, complying with global industrial standards including JIS H 5302 and EN AC-46000. This alloy material has excellent molten fluidity, balanced mechanical strength and superior thermal conductivity, which is the most ideal material for high-precision die-casting forming of LED cabinets. It perfectly adapts to the lightweight, heat dissipation and anti-corrosion performance requirements of long-term continuous operation of LED display equipment.
2. Core Parameter & Specification Table of ADC12 Cast Aluminum Boxes
2.1 Material Performance Advantages of ADC12 for LED Cabinets
ADC12 aluminum alloy has unique advantages in the production of cast aluminum LED cabinets. Its high silicon content ensures full filling of complex mold structures, effectively avoiding casting defects such as pores and burrs. After professional anodizing, sandblasting and surface strengthening treatment, the finished cabinets gain excellent corrosion resistance, oxidation resistance and surface flatness, ensuring stable operation in various complex environments and greatly extending the service life of LED display equipment.
2.2 Universal Standard Specification Parameter Table
The following standardized parameters cover all core performance and processing indicators of custom ADC12 cast aluminum boxes, adapting to global LED display industry inspection and application standards:
|
Parameter Item
|
Standard Specification
|
Inspection & Execution Standard
|
|
Material Grade
|
ADC12 Aluminum Alloy (AlSi9Cu3)
|
JIS H 5302 / EN AC-46000
|
|
Silicon (Si) Content
|
9.6% - 12.0%
|
Spectral composition detection
|
|
Copper (Cu) Content
|
1.5% - 3.5%
|
Spectral composition detection
|
|
Thermal Conductivity
|
≥120 W/m·K
|
Room temperature physical test
|
|
Tensile Strength
|
≥250 MPa
|
Industrial mechanical performance test
|
|
Brinell Hardness
|
75 HB
|
Metal hardness standard detection
|
|
Dimensional Tolerance
|
±0.05mm (precision cabinets); ±0.1mm (conventional cabinets)
|
ISO die-casting precision standard
|
|
Surface Roughness
|
Ra ≤1.6μm
|
Post-finishing surface detection
|
|
Processing Wall Thickness
|
0.8mm - 5.0mm (customizable)
|
High-pressure die-casting forming standard
|
|
Salt Spray Resistance
|
≥96 hours neutral salt spray test pass
|
Anodizing & sandblasting composite treatment
|
|
Protection Grade
|
IP65 (indoor & outdoor general type)
|
International IP protection standard
|
|
Qualification Certification
|
RoHS / ISO9001
|
Global universal industrial certification
|
3. Key Functions of Die-Cast Aluminum LED Cabinets
3.1 Stable Structural Support & Deformation Resistance
Adopting one-piece die-casting integrated forming structure, ADC12 cast aluminum boxes have high structural rigidity and overall stability. They can firmly fix LED modules, power supplies and control components, effectively resisting vibration, impact and structural deformation during long-term operation and frequent disassembly and assembly. This ensures the flatness and display consistency of the entire LED screen, avoiding screen distortion and display failure caused by structural looseness.
3.2 Efficient Heat Dissipation & Equipment Protection
Relying on the high thermal conductivity of ADC12 aluminum alloy, die-cast aluminum LED cabinets can quickly conduct and dissipate the heat generated by high-brightness LED modules during operation. The integrated heat dissipation structure avoids local heat accumulation, prevents LED lamp beads and electronic components from aging and burning out due to high temperature, and effectively prolongs the service life of LED display equipment.
3.3 Seamless Assembly & High-Precision Matching
Through precision mold design and secondary CNC finishing, cast aluminum boxes achieve ultra-strict dimensional tolerance control. The reserved assembly holes, clamping positions and connecting structures are highly matched with standard LED modules, realizing seamless splicing between multiple cabinets. It eliminates assembly gaps and screen unevenness, ensuring ultra-clear and integrated display effect of the LED screen.
3.4 All-Weather Environmental Adaptability
After professional surface strengthening treatment, custom ADC12 cast aluminum cabinets have excellent oxidation resistance, corrosion resistance, dustproof and waterproof performance. They can operate stably in high temperature, low temperature, humid, dusty and other complex indoor and outdoor environments, with strong durability and low later maintenance cost.
4. Outstanding Advantages of Cast Aluminum LED Cabinet Boxes
4.1 Lightweight & High Strength Integration
Compared with traditional iron LED cabinets, ADC12 die-cast aluminum cabinets reduce overall weight by 30%-40% while maintaining high structural strength. The lightweight design greatly reduces the load of installation supports, simplifies transportation and on-site assembly processes, and is very suitable for high-altitude installation, stage rental and frequent mobile use scenarios.
4.2 Ultra-High Forming Precision & Stable Quality
Adopting high-pressure one-time die-casting forming technology, the dimensional precision of cast aluminum boxes can reach ±0.05mm for precision models. The internal metal texture is uniform and dense without loose pores, with strong vibration resistance and impact resistance. The product quality is stable and consistent, avoiding batch difference problems of traditional welded cabinets.
4.3 Strong Customization Flexibility
Different from fixed-spec standard cabinets, custom die-cast aluminum LED boxes support full-dimensional personalized customization, including cabinet size, outline structure, wall thickness, hole position, heat dissipation tank design and surface treatment technology. It can produce non-standard special-shaped cabinets to meet the differentiated matching needs of special-shaped LED screens, curved screens and customized display projects.
4.4 Excellent Mass Production Cost Performance
Die-casting integrated forming simplifies the production process and shortens the production cycle. Compared with traditional welding and stamping processing, the comprehensive production cost is reduced by 20%-30%. With the advantage of batch scale effect, the larger the order quantity, the more obvious the cost advantage, bringing long-term high cost performance for customers’ bulk procurement.
4.5 Superior Heat Dissipation & Anti-Aging Performance
ADC12 aluminum alloy’s natural thermal conductivity is far better than iron and plastic materials. The integrated heat dissipation structure of cast aluminum boxes realizes uniform and rapid heat dissipation, effectively reducing the operating temperature of LED equipment. It greatly slows down the aging speed of electronic components and ensures long-term stable display performance of LED screens.
5. Main Market Application Scenarios
5.1 Outdoor Commercial Advertising Displays
Die-cast aluminum LED cabinets are widely used in outdoor building curtain wall screens, highway billboards, street advertising screens and shopping mall outdoor display screens. Their IP65 waterproof and dustproof performance and anti-corrosion ability adapt to harsh outdoor weather, ensuring stable long-term operation of outdoor advertising display equipment.
5.2 Stage Rental & Event Display Equipment
Lightweight, high-strength and easy-to-disassemble cast aluminum boxes are the first choice for stage performance, exhibition activities, wedding ceremonies and temporary event LED display screens. They support rapid assembly and disassembly, can be reused multiple times, and effectively reduce the transportation and labor costs of rental equipment.
5.3 Indoor Commercial & Intelligent Display
Applied to indoor shopping mall display screens, elevator advertising screens, conference room splicing screens, studio display screens and intelligent terminal display equipment. The high-precision seamless splicing feature ensures high-definition and delicate indoor display effect, improving the overall grade of commercial and office scenarios.
5.4 Industrial & Public Facility Display
Suitable for factory workshop data display screens, traffic guidance display screens, community public information display screens and stadium display equipment. The strong environmental adaptability and stable structural performance meet the long-term uninterrupted operation needs of public and industrial display equipment.
6. Market Price Analysis of Custom Cast Aluminum Boxes
The market price of custom die-cast aluminum LED cabinets presents obvious tiered differences, mainly affected by structural complexity, processing precision, surface technology and order batch size, with prominent scale price advantage:
6.1 Conventional Standard Cabinets (Low & Medium Precision)
Regular-size, simple-structure cast aluminum boxes with conventional surface treatment have low processing difficulty and stable unit price. They are suitable for ordinary indoor and outdoor conventional display projects, with fast delivery and high cost performance, occupying the mainstream market share.
6.2 High-Precision Custom Cabinets
Special-shaped structure, ultra-thin wall, high-precision matching and special surface treatment (hard anodizing, matte sandblasting) cabinets have high technical processing thresholds and relatively high unit prices. They are mainly used for high-end commercial display, creative curved screen and high-precision stage display projects.
6.3 Batch Preferential Pricing Rule
The custom die-cast aluminum cabinet industry has obvious batch scale effect. Small-batch customized orders need to bear independent mold opening and fixed production costs, with relatively high unit price. For large-batch orders, professional manufacturers will dilute fixed costs through mass production and implement exclusive tiered discount policies. The larger the order quantity, the higher the discount, which can significantly reduce customers’ long-term comprehensive procurement costs.
7. Common Usage Problems & Practical Solutions
7.1 Surface Oxidation & Fade Discoloration
Problem: Long-term exposure to outdoor humid, high-temperature and ultraviolet environments may cause surface oxidation, discoloration and rust of cast aluminum cabinets, affecting appearance and partial protective performance.
Solution: Adopt composite surface treatment process of professional anodizing and fine sandblasting to form a dense protective film on the cabinet surface. Cooperate with regular daily cleaning and maintenance to effectively isolate air and moisture, and prevent oxidation and discoloration.
7.2 Poor Splicing & Uneven Screen Surface
Problem: Insufficient mold precision and unrefined post-processing lead to inconsistent cabinet size and unflat assembly interface, resulting in large splicing gaps and uneven LED screen surface.
Solution: Strictly control mold manufacturing precision and die-casting process parameters, conduct full CNC finishing and flatness detection for each cabinet, and unify assembly benchmark standards to ensure seamless and flat splicing of all cabinets.
7.3 Poor Heat Dissipation & High Equipment Temperature
Problem: Unreasonable cabinet heat dissipation structure design leads to blocked heat conduction, resulting in excessive operating temperature of LED modules and reduced display stability.
Solution: Optimize heat dissipation groove and ventilation structure in the design stage, make full use of ADC12 alloy’s high thermal conductivity to realize three-dimensional uniform heat dissipation, and ensure long-term low-temperature operation of LED equipment.
7.4 Structural Deformation & Loose Assembly
Problem: Low structural rigidity and insufficient tolerance control cause cabinet deformation after long-term use or multiple disassembly, leading to loose assembly and unstable equipment operation.
Solution: Optimize cabinet structural reinforcement design, strictly control die-casting forming and processing tolerance, and conduct structural pressure resistance test before delivery to ensure stable structural performance and repeated disassembly and assembly resistance.
8. Industry Expert Viewpoints on Die-Cast Aluminum LED Cabinets
Senior experts from the Display Equipment Manufacturing Industry Association pointed out that with the continuous upgrading of commercial display and intelligent equipment, traditional iron and plastic LED cabinets can no longer meet the industry’s requirements for lightweight, high precision, long life and high stability of modern display equipment.
ADC12 die-cast aluminum LED cabinets have become the mainstream choice of the industry by virtue of their unique lightweight advantage, efficient heat dissipation performance and high-precision seamless assembly effect. Custom cast aluminum box solutions perfectly solve the pain points of heavy weight, poor heat dissipation, easy deformation and short service life of traditional cabinets, and are widely recognized in commercial display, stage rental and public facility fields.
Industry technical experts emphasized that standardized material selection, refined die-casting process and strict precision detection are the core guarantees of cast aluminum cabinet quality. Choosing a professional manufacturer with independent production capacity and high-precision processing equipment is the key to obtaining high-quality custom die-cast aluminum LED cabinets and reducing long-term equipment operation and maintenance costs.
9. Industry Development Trends & High-Quality Supplier Selection Guide
9.1 Development Trends of Custom Die-Cast Aluminum Product Industry
Ultra-Precision & Functional Integration: The industry is developing towards higher dimensional precision and multi-functional integration. A single cast aluminum cabinet will integrate heat dissipation, waterproof, anti-collision, quick assembly and other multiple functions to adapt to high-end customized display equipment needs.
Lightweight & Green Manufacturing: Manufacturers continuously optimize material formulas and structural design to reduce product weight and production energy consumption, conforming to the global green and low-carbon manufacturing development trend.
Intelligent Production & Rapid Customization: Intelligent mold opening, rapid proofing and efficient mass production modes greatly shorten the customization and delivery cycle, meeting the rapid iteration needs of downstream display equipment.
Standardized Quality Upgrade: The industry is gradually forming unified high-precision processing and testing standards, and product durability and environmental adaptability are continuously improved to meet global high-end market access requirements.
9.2 Core Standards for Selecting High-Quality Hardware Processing Suppliers
When choosing a custom die-cast aluminum cabinet supplier, enterprises need to focus on comprehensive production strength, technical level and service capability. The core selection criteria are as follows:
-
Complete Qualification Certification: Possess ISO9001 quality management system certification and RoHS environmental certification to ensure products meet global industrial standards.
-
High-Precision Processing Equipment: Equipped with professional CNC finishing equipment, flaw detection equipment and precision testing instruments to realize strict tolerance control.
-
Independent R&D & Customization Capability: Own independent mold R&D and production capacity to meet complex non-standard personalized customization needs.
-
Self-Owned Factory & Stable Capacity: Have independent production plants and complete production chains to ensure stable delivery and strict quality control.
-
Flexible Batch Discount Policy: Provide transparent tiered preferential prices for bulk orders to help customers reduce comprehensive procurement costs.
10. Why Choose Xinghang Precision Hardware for Custom Cast Aluminum Boxes
10.1 Professional Precision Processing & Strict Tolerance Control
We are equipped withflaw detectors, five-face CNC machines and three-dimensional testing equipment, realizing ultra-precise dimensional tolerance control for all custom die-cast aluminum LED cabinets. We have rich experience in complex drawing analysis and special-shaped structural customization, and can fully meet the ultra-high dimensional precision requirements of various high-end LED display equipment, with reliable tolerance control capability.
10.2 Full-Coverage Customization Capacity
Xinghang Precision Hardware supports customization of all types of die-cast aluminum product shells, covering standard LED display cabinets, special-shaped curved cabinets, ultra-thin integrated cabinets and other diversified products. We can design and produce exclusive cast aluminum boxes according to customer drawings, sample requirements and actual application scenarios, realizing one-stop personalized customization services.
10.3 Large Self-Owned Factory & Strict Quality Control
We own a 10,000-square-meter modern independent factory with a complete industrial chain integrating mold R&D, die-casting production, precision CNC processing and professional surface treatment. Without intermediate distributors, we implement full-process quality monitoring from raw material incoming inspection to finished product delivery, realizing dual guarantees of superior product quality and competitive factory direct sales prices.
10.4 Flexible Batch Discount & One-Stop Full-Cycle Service
We implement a transparent customer-friendly tiered discount mechanism: the more the order quantity, the higher the discount, effectively reducing customers’ long-term bulk procurement costs. Meanwhile, we provide full-cycle services including pre-sales technical consultation, drawing optimization, mold development, mass production, surface treatment and after-sales technical support, allowing customers to enjoy worry-free one-stop customization services.
11. Industry FAQ for Die-Cast Aluminum LED Cabinets
Q1: Why is ADC12 aluminum alloy the best choice for LED cast aluminum boxes?
ADC12 aluminum alloy is specially optimized for high-pressure die-casting process, with excellent molten fluidity, which can realize one-piece forming of complex cabinet structures without casting defects. It has balanced mechanical strength, outstanding thermal conductivity and stable chemical properties, with better corrosion resistance and cost performance than ordinary aluminum materials. It fully meets the lightweight, heat dissipation and durable operation requirements of LED display equipment, making it the most suitable material for LED cabinet production.
Q2: What customization services can you provide for die-cast aluminum LED cabinets?
We provide full-process personalized customization services for all cast aluminum LED cabinets, including cabinet overall size, structural design, wall thickness adjustment, heat dissipation structure optimization, hole and groove position customization, and various surface treatment processes (anodizing, sandblasting, electrophoretic coating). We can tailor exclusive solutions according to customers’ LED module specifications and application scenarios.
Q3: What is the service life of qualified custom cast aluminum boxes?
Under standard indoor and outdoor operating conditions and with regular daily maintenance, qualified ADC12 die-cast aluminum LED cabinets can achieve a long service life. Professional surface strengthening treatment endows the product with excellent oxidation resistance, corrosion resistance and structural fatigue resistance, which can adapt to long-term uninterrupted operation of display equipment and greatly reduce later replacement and maintenance costs.
Q4: Is bulk custom die-cast aluminum cabinet procurement cost-effective?
It is extremely cost-effective. Although customized products involve one-time mold opening costs, mass production can fully dilute fixed production and processing costs. Large-batch orders can save 20%-30% of comprehensive procurement costs compared with small-batch customization. Equipped with our exclusive batch discount policy, customers can obtain higher cost performance in long-term cooperative procurement.
Q5: Can your products meet international industry standards?
All our custom ADC12 die-cast aluminum LED cabinets comply with JIS H 5302 and EN AC-46000 international industrial standards, and pass ISO9001 international quality certification and RoHS environmental certification. All products meet global market access requirements and are suitable for domestic and overseas commercial display engineering projects.
12. Comprehensive Summary
Die-cast aluminum LED cabinets (ADC12 cast aluminum boxes) are core supporting components of modern high-end LED display equipment, integrating lightweight, high precision, efficient heat dissipation and strong environmental adaptability. Compared with traditional cabinet products, they have obvious advantages in structural stability, display effect and service life, and are widely used in commercial advertising, stage rental, public facilities and other fields.
The custom die-cast aluminum product industry is steadily developing towards ultra-precision customization, functional integration, green intelligent manufacturing and standardized quality upgrading. In the increasingly competitive market, choosing a reliable, self-produced and high-precision processing supplier is crucial for enterprises to obtain high-quality products, stable delivery and cost control.
As a professional custom die-cast precision hardware manufacturer, Xinghang Precision Hardware relies on its 10,000-square-meter independent factory, high-end precision processing and testing equipment, strict full-process quality control system and flexible batch preferential policies, to provide global customers with reliable, high-cost-performance one-stop custom die-cast aluminum cabinet and shell customization solutions.
13. Official Contact Information
Welcome global customers to consult product parameters, customize drawing processing and inquire about factory wholesale quotations! We provide professional one-stop custom die-cast product solutions and intimate full-cycle technical and after-sales services.
Mobile / Whatsapp / WeChat: +86 18819502691
Email: liqine@xinghangcn.com
