What is a Die-cast Aluminum Wall Mount Bracket? Full Guide
Table of Contents
1. Overview of Die-cast Aluminum Wall Mount Bracket
1.1 Definition of Die-cast Aluminum Wall Mount Bracket

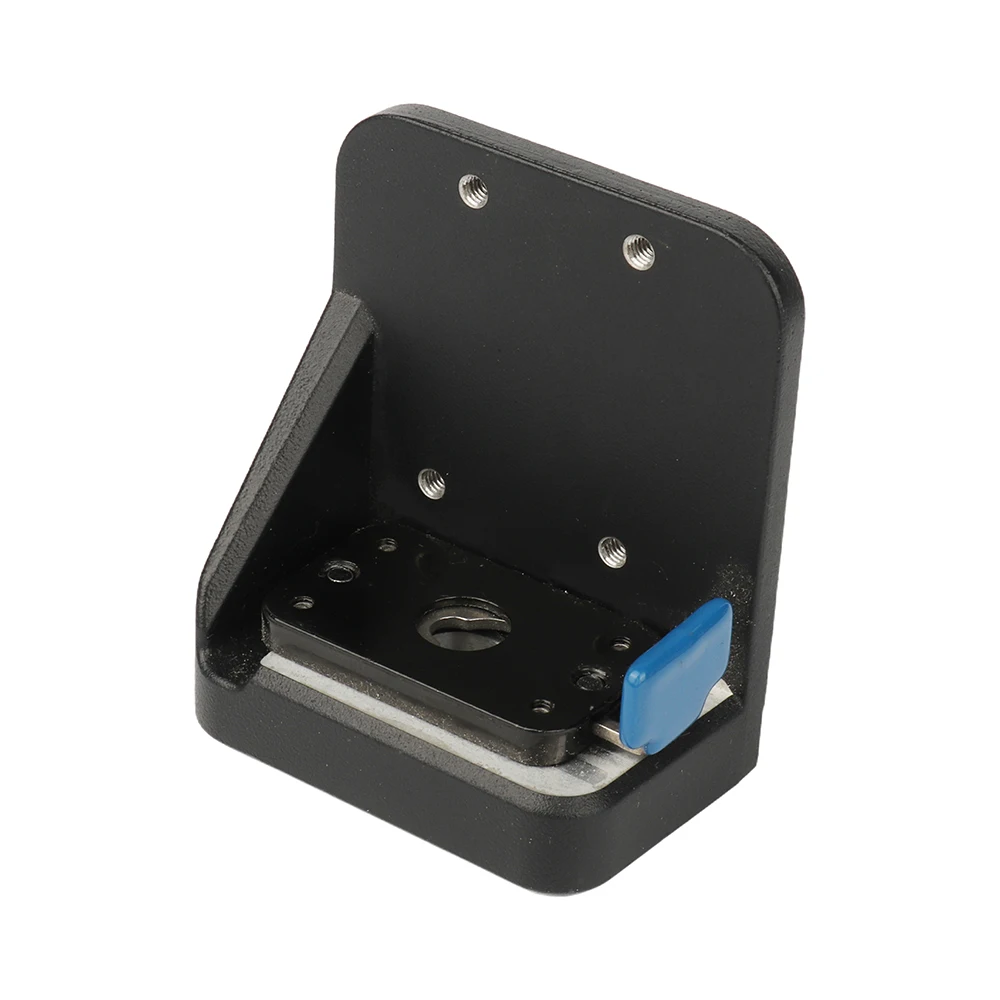

A die-cast aluminum wall mount bracket is a high-strength, precision structural hardware component manufactured through high-pressure die-casting and CNC precision secondary processing. It is specially designed for wall-mounted installation, used to fix, support and stabilize various equipment and products on vertical wall surfaces. Different from ordinary plastic and iron wall brackets, this product adopts integrated die-casting molding technology, featuring integral forming, no assembly gaps, and excellent overall structural stability.
In the current hardware manufacturing industry, ADC12 aluminum alloy has become the preferred material for mass production of die-cast aluminum wall mount brackets. With balanced mechanical properties, outstanding casting fluidity and ultra-high cost performance, ADC12 material enables wall mount brackets to adapt to various indoor and outdoor complex environments, meeting the long-term load-bearing and anti-deformation requirements of industrial and civil scenarios.
2. Standard Parameter Specifications of ADC12 Die-cast Aluminum Wall Mount Bracket
2.1 Material Basic Features
The die-cast aluminum wall mount bracket adopts ADC12 aluminum alloy that complies with JIS H5302 Japanese industrial standard. It is a high-silicon aluminum-copper alloy with low shrinkage rate and stable chemical properties, suitable for integrated die-casting of complex bracket structures. It can maintain stable mechanical performance under long-term load-bearing and environmental erosion conditions.
2.2 Complete Universal Parameter Specification Table
|
Parameter Item
|
Universal Standard Specifications
|
|
Alloy Standard
|
JIS H5302 (ADC12 Aluminum Alloy)
|
|
Dimension Specifications
|
100×100mm / 200×100mm / 200×200mm / 300×300mm / 400×400mm (customizable)
|
|
Maximum Load-bearing Capacity
|
5kg - 18kg (customized reinforcement available)
|
|
Tensile Strength
|
270 - 310 MPa
|
|
Hardness
|
85 - 95 HB
|
|
Precision Tolerance
|
±0.01mm - ±0.05mm
|
|
Adjustable Angle
|
Up +15° / Down -5° (adjustable model)
|
|
Surface Treatment
|
Anodizing, sandblasting, electroplating, passivation
|
|
Processing Technology
|
High-pressure die-casting + CNC fine milling + deburring
|
|
Service Life
|
10+ years (stable in conventional environments)
|
3. Core Functions and Key Roles of Die-cast Aluminum Wall Mount Brackets
3.1 Stable Load-bearing & Fixed Positioning
The core role of ADC12 die-cast aluminum wall mount brackets is to provide stable load-bearing support. Relying on high hardness and integrated integral structure, they can firmly fix various devices on the wall, effectively dispersing equipment gravity and wall pressure. They avoid displacement, shaking or falling off of wall-mounted equipment caused by long-term use, ensuring the safe and stable placement of equipment.
3.2 Space Saving & Layout Optimization
Wall-mounted bracket design changes the traditional floor placement mode, greatlysaving indoor and industrial space. It is widely used for fixing monitors, speakers, monitoring equipment, industrial sensors and smart home devices, optimizing space layout, improving space utilization, and making equipment placement more standardized and tidy.
3.3 Vibration Reduction & Operation Stability Assurance
ADC12 aluminum alloy has excellent structural toughness and vibration resistance. The integrated die-casting wall mount bracket can effectively buffer the vibration generated during equipment operation, reduce vibration transmission and resonance interference. It guarantees the stable operation of precision electronic and industrial equipment and reduces equipment failure rates.
3.4 Environmental Adaptation & Long-term Protection
After professional surface treatment, die-cast aluminum wall brackets have outstanding anti-oxidation and anti-corrosion capabilities. They can adapt to humid, high-temperature, dusty and weak acid-base environments, protecting fixed equipment from environmental erosion and extending the overall service life of the entire equipment system.
4. Unique Advantages of ADC12 Die-cast Aluminum Wall Mount Brackets
4.1 Integrated Die-casting, Higher Structural Integrity
Different from spliced iron and plastic brackets, ADC12 die-cast aluminum wall mount brackets adopt one-piece high-pressure die-casting molding, with no assembly gaps or loose parts. The overall structural strength is far higher than traditional spliced brackets, effectively avoiding structural loosening and deformation caused by long-term load bearing, and achieving zero failure in long-term fixed use.
4.2 Lightweight & High Strength, No Wall Damage
Aluminum alloy density is only 1/3 of steel, realizing the perfect combination of light weight and high load-bearing. The lightweight feature reduces the overall wall load, avoiding wall cracking and screw loosening caused by overweight brackets. Meanwhile, its high tensile strength and hardness ensure stable load-bearing performance without sacrificing safety.
4.3 Excellent Corrosion Resistance & Durability
With stable chemical properties of ADC12 alloy and multiple surface protection processes, the brackets have strong resistance to oxidation, rust and chemical corrosion. Compared with ordinary iron brackets that are prone to rust and deformation, their service life is 3-5 times longer, greatly reducing later replacement and maintenance costs.
4.4 High Precision & Strong Matching Adaptability
Adopting CNC precision machining, the mounting hole tolerance is controlled within ±0.01mm, ensuring precise fitting with equipment and wall mounting holes. The product supports customized sizes, angles and hole positions, which can perfectly match various standard and non-standard wall-mounted equipment, with extremely high compatibility.
4.5 Green Environmental Protection & High Cost Performance
ADC12 aluminum alloy is 100% recyclable, green and pollution-free, in line with global green manufacturing standards. With mature die-casting mass production technology, the product has low comprehensive cost, stable quality and higher cost performance than stainless steel and customized alloy brackets, suitable for large-scale batch procurement.
5. Industry Expert Viewpoints on Die-cast Aluminum Wall Mount Supports
Li Ming, a senior hardware structure engineer and industry expert engaged in precision die-casting manufacturing for 18 years, pointed out: “With the upgrading of smart home and industrial intelligent equipment, the market demand for wall mount brackets is shifting from simple fixed functions to high stability, high precision and environmental durability.”
He emphasized that traditional plastic brackets have insufficient load-bearing capacity and poor aging resistance, while ordinary iron brackets are prone to rust and heavy weight. ADC12 die-cast aluminum wall mount brackets have become the mainstream choice in the industry by virtue of their balanced lightweight, high strength, corrosion resistance and precision advantages, and will gradually replace traditional bracket products in high-end commercial and industrial scenarios.
Industry market research data shows that the demand for aluminum die-cast wall mounting structural parts maintains a steady growth rate of 6.8% annually. Driven by smart home popularization and industrial equipment upgrading, high-precision die-cast aluminum wall brackets will usher in broader market space in the next five years.
6. Common Application Scenarios
6.1 Smart Home Equipment
Widely used for wall fixing of smart TVs, projectors, audio equipment, smart cameras and sensing devices, realizing space optimization and stable equipment operation.
6.2 Industrial Automation Equipment
Used for fixing industrial sensors, monitoring instruments, small mechanical arms and control panels, providing stable structural support for intelligent production equipment.
6.3 Commercial & Public Facilities
Suitable for wall mounting of display screens, advertising equipment, monitoring equipment and public service terminals in shopping malls, office buildings and public spaces.
6.4 New Energy & Communication Fields
Applied to fixed support of communication base station auxiliary equipment, new energy equipment heat dissipation modules and wall-mounted power supply accessories, adapting to high-stability industrial operation requirements.
7. Frequently Asked Questions (FAQs)
Q1: Why choose ADC12 material for die-cast aluminum wall mount brackets?
ADC12 aluminum alloy has excellent casting performance, stable mechanical properties and ultra-high cost performance. It has good fluidity during die-casting molding, low product defect rate, and can realize integrated molding of complex bracket structures. Its hardness and tensile strength fully meet the load-bearing and anti-deformation requirements of wall mount brackets, making it the most suitable material for mass production of wall mount brackets.
Q2: What is the maximum load-bearing capacity of your wall mount brackets?
Our standard ADC12 die-cast aluminum wall mount brackets have a load-bearing range of 5kg to 18kg. We can provide customized reinforcement products according to customer's heavy-load usage needs to meet higher load-bearing working scenarios.
Q3: Are the brackets suitable for outdoor and humid environments?
Yes. After anodizing and passivation surface treatment, the brackets have excellent waterproof, anti-rust and anti-corrosion performance. They can work stably for a long time in outdoor open-air, humid and dusty environments without deformation or rust.
Q4: Can customized sizes and structures be provided?
We support full personalized customization including bracket size, mounting hole position, adjustable angle, surface color and load-bearing strength. According to customer equipment parameters and installation scenarios, we can provide one-stop customized processing solutions.
Q5: What is the delivery cycle for batch orders?
Conventional standard brackets support spot delivery within 3 working days. For customized batch orders, the delivery cycle is 7-15 working days according to product complexity and order quantity, with stable and efficient delivery capacity.
8. Industry Development Trends & How to Select a Qualified Supplier
8.1 2026 Die-cast Aluminum Wall Mount Bracket Industry Trends
8.1.1 High Precision & Customized Diversification
With the diversification of smart equipment types, wall mount brackets are developing towards high precision and personalized customization. Standard single-size products can no longer meet market demands, and customized products matching special equipment and installation environments will become the mainstream trend.
8.1.2 Integrated & Lightweight Upgrading
The industry is gradually eliminating heavy spliced structural brackets, and one-piece die-casting lightweight brackets have become the development direction. While ensuring load-bearing safety, lightweight products reduce installation difficulty and wall pressure, meeting the lightweight development needs of modern manufacturing.
8.1.3 Green & Low-Carbon Production
Green environmental protection has become a mandatory standard for industry production. More manufacturers adopt recyclable aluminum materials and environmentally friendly surface treatment processes to reduce production pollution, which is in line with global sustainable development policies.
8.1.4 Higher Standard Quality Inspection
Market requirements for bracket stability, durability and precision are continuously improved. Strict full-process quality inspection has become the core threshold for enterprise competition, and high-quality and zero-defect products will occupy the dominant market share.
8.2 Key Standards for Selecting a Qualified Hardware Supplier
8.2.1 Standard Material & Stable Process
Reliable suppliers must adopt standard ADC12 aluminum alloy materials and have mature high-pressure die-casting and CNC precision processing technologies to ensure consistent product performance and dimensional accuracy, avoiding unqualified products caused by inferior materials and immature processes.
8.2.2 Complete Quality Control System
Excellent suppliers have a full-process quality inspection mechanism, conducting strict tests on product hardness, tolerance, load-bearing performance and surface quality to ensure that all delivered products meet industrial standards.
8.2.3 Stable Mass Production & Fast Delivery
Qualified manufacturers have independent production workshops and complete production lines, with sufficient mass production capacity to meet large-batch order demands and ensure stable delivery cycles.
8.2.4 Flexible Customization & Cost-Effective Pricing
High-quality suppliers support personalized customized services, with transparent and reasonable pricing mechanisms. They provide long-term cost-effective procurement solutions for customers, and have preferential policies for batch orders.
9. Cooperate With Us – Xinghang Precision Hardware
9.1 Our Core Advantages
Xinghang Precision Hardware is a professional manufacturer focusing on R&D, die-casting processing and customized production of ADC12 die-cast aluminum wall mount brackets. We own advanced high-pressure die-casting production lines, CNC five-axis precision processing equipment and a professional quality inspection team.
All our products strictly comply with JIS H5302 industrial standards, with precise dimensions, stable load-bearing performance and excellent corrosion resistance. We have rich experience in serving smart home, industrial automation, communication and new energy industries, and can provide standard and customized wall mount bracket solutions for global customers.
9.2 Exclusive Batch Preferential Policy
To thank new and old customers for their trust, we launch abulk order discount policy: the more you order, the more favorable the price. For long-term cooperative large-batch orders, we provide exclusive customized pricing, priority delivery, free sample testing and free after-sales maintenance services, helping customers comprehensively reduce procurement costs.
9.3 Contact Information
Welcome global customers to consult, customize and establish long-term win-win cooperation!
Phone / Whatsapp / WeChat: +86 18819502691
Email: liqine@xinghangcn.com
10. Conclusion
ADC12 die-cast aluminum wall mount brackets are indispensable precision hardware components in modern smart homes and industrial equipment. With the core advantages of integrated molding stability, lightweight high strength, corrosion resistance and high precision, they perfectly solve the problems of fixed installation, safe load-bearing and space optimization of wall-mounted equipment, and have completely replaced traditional plastic and iron brackets in high-end application scenarios.
As the industry continues to develop towards high precision, customization, lightweight and green environmental protection, the market demand for high-quality die-cast aluminum wall mount brackets will maintain steady growth. Choosing a professional, qualified and cost-effective hardware supplier is the key to ensuring product quality and long-term stable equipment operation.
Xinghang Precision Hardware adheres to the service concept of quality first and customer foremost. We rely on mature processing technology, strict quality control and flexible batch preferential policies to provide global customers with high-quality die-cast aluminum wall mount bracket products and one-stop customized services. We sincerely invite customers from all over the world to cooperate for mutual benefit and common development!
