What is an Aluminum Display Frame? Complete Guide to ADC12 Die‑Cast Display Frame
Table of Contents
Overview: What Is an Aluminum Display Frame?
As a key die‑cast hardware product, it solves the defects of easy deformation, poor heat dissipation, and short service life of traditional frames, and is widely used in various standardized and customized display screen supporting scenarios.
2. Core Product Introduction: ADC12 Aluminum Display Frame Details
2.1 Basic Product Definition

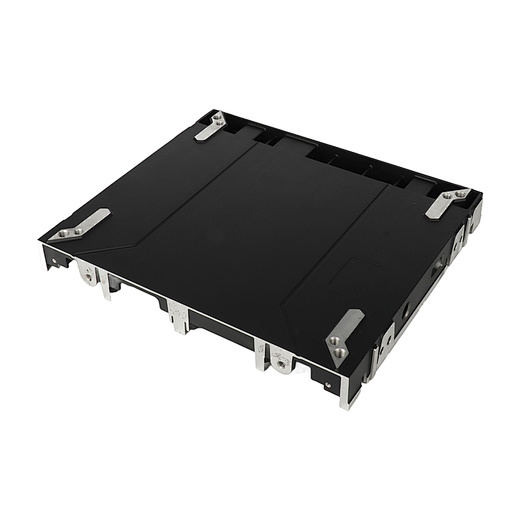

The ADC12 aluminum display frame is a customized die‑cast structural part formed by high‑pressure die‑casting of ADC12 aluminum alloy and processed by precision 5‑axis CNC finishing. It is tailor‑made for various sizes and types of display screens, including fixed‑size standard frames and irregular curved customized frames, covering almost all display equipment assembly needs.
2.2 Core Material Characteristics of ADC12 Aluminum Alloy
ADC12 is a high‑fluidity aluminum‑silicon die‑cast alloy, which is the most suitable material for display frame production. It has excellent die‑casting formability, can form complex frame structures and heat dissipation grooves in one piece, and has stable mechanical properties. Compared with other aluminum alloys, ADC12 aluminum alloy has lower production cost, better dimensional stability, and stronger adaptability to batch processing, fully meeting the mass production demand of display frames.
2.3 Product Processing Technology
High‑quality aluminum display frames adopt a dual‑process of high‑pressure die‑casting blank forming + 5‑axis CNC precision finishing. Die‑casting ensures the overall structural integrity and production efficiency of the frame, while 5‑axis one‑clamp processing eliminates positioning errors, realizes high‑precision splicing of frame grooves and mounting holes, and avoids the deformation and burr problems caused by traditional multi‑process processing.
3. Standard Parameter Table of ADC12 Aluminum Display Frame
The following are universal standard parameters of mass‑produced ADC12 aluminum display frames, applicable to most indoor and outdoor LED display screens, stage curved screens, and commercial splicing screen equipment:
| Parameter Item | Universal Standard Value | Customizable Range | Remarks |
|---|---|---|---|
| Material | ADC12 Aluminum Die‑Cast Alloy | Fixed mainstream material | High fluidity, anti‑deformation, cost‑effective |
| Dimensional Tolerance | ±0.005mm~±0.01mm | ±0.003mm ultra‑precision customization | Ensure seamless screen splicing |
| Surface Roughness | Ra 0.8~Ra 3.2 | Ra 0.6 mirror finishing | Support anodization, sandblasting treatment |
| Frame Thickness | 15mm~30mm | 10mm~50mm customized | Adapt to different screen load‑bearing needs |
| Heat Dissipation Groove Specification | Standard dense groove design | Custom groove spacing & depth | Accelerate screen heat circulation |
| Protection Level | IP54 | IP65 high waterproof customization | Suitable for indoor and outdoor scenarios |
| Service Life | 8‑10 years | Extended anti‑corrosion customization | Stable outdoor long‑term use |
4. Core Functions of Aluminum Display Frames
4.1 Precise Assembly & Seamless Splicing
The high‑precision mounting grooves and positioning holes processed by 5‑axis CNC ensure zero‑gap splicing of multiple display screens. It effectively avoids screen dislocation, uneven gaps and other assembly problems, ensuring the overall flatness and display effect of the spliced screen.
4.2 Structural Load‑Bearing & Anti‑Shock Protection
ADC12 aluminum alloy has high structural rigidity and toughness. The integrated frame structure can stably bear the weight of display modules, and resist vibration and impact during transportation and use, preventing screen damage and frame deformation.
4.3 Efficient Heat Dissipation & Temperature Reduction
The unique heat dissipation groove design of the aluminum frame makes full use of the excellent thermal conductivity of aluminum alloy, quickly dissipating the heat generated by the LED screen during operation, reducing screen temperature, and avoiding screen failure and light decay caused by overheating.
4.4 Waterproof, Dustproof & Anti‑Corrosion
After precision finishing and surface treatment, the frame has good sealing and anti‑corrosion performance, blocking rainwater, dust and moisture erosion, adapting to complex outdoor environments, and greatly extending the service life of display equipment.
5. Common Usage Problems & Solutions in Practical Application
5.1 Frame Deformation After Long‑Term Use
Problem Cause: Low‑precision processing, uneven frame stress, or repeated clamping deformation in processing.
Solution: Adopt 5‑axis CNC one‑clamp integrated processing to eliminate stress deviation; select high‑purity ADC12 die‑cast aluminum blanks to ensure uniform material density and structural stability.
5.2 Poor Splicing Gap & Uneven Flatness
Problem Cause: Low processing tolerance, irregular positioning hole size, and manual assembly error.
Solution: Control processing tolerance within ±0.005mm, adopt unified datum positioning, and support factory pre‑assembly debugging to ensure consistent splicing effect.
5.3 Poor Heat Dissipation Leading to Screen Overheating
Problem Cause: Unreasonable heat dissipation groove design, rough surface affecting heat conduction.
Solution: Optimize heat dissipation groove structure through professional process design, adopt mirror finishing to improve heat conduction efficiency, and customize heat dissipation schemes according to screen power.
5.4 Surface Oxidation & Rust in Outdoor Use
Problem Cause: No professional surface anti‑corrosion treatment, low alloy purity.
Solution: Match anodization, sandblasting and other surface treatments for ADC12 frames to enhance anti‑oxidation and anti‑corrosion ability, adapting to outdoor high‑humidity and high‑temperature environments.
6. Market Application Scenarios & Industry Coverage
6.1 Commercial Exhibition Industry
Widely used in indoor large‑screen splicing displays in shopping malls, exhibition halls, conference centers, and corporate exhibition halls. The high‑precision splicing advantage of aluminum frames ensures ultra‑flat display effect, meeting high‑standard commercial display needs.
6.2 Outdoor Public Media Industry
Applied to outdoor roadside billboards, community publicity screens, and urban traffic guidance display screens. The anti‑corrosion, wind‑resistant and durable characteristics of ADC12 aluminum frames adapt to harsh outdoor weather and reduce later maintenance costs.
6.3 Stage & Performance Engineering
Special‑shaped curved aluminum display frames are widely used in concert stages, theatrical performances, and wedding ceremony scenes. Only 5‑axis CNC processing can complete irregular curved frame production, realizing personalized and creative screen display effects.
6.4 Intelligent Traffic & Industrial Control Industry
Used in road traffic guidance screens, industrial workshop monitoring displays, and intelligent equipment terminal display frames. The stable structural performance ensures long‑term uninterrupted operation of industrial display equipment.
6.5 New Energy & Smart Home Industry
Support customized small and medium‑sized display frames for new energy equipment display screens and smart home terminal displays, with lightweight and high‑precision features matching intelligent equipment design trends.
7. Market Price Analysis of ADC12 Aluminum Display Frames
The market price of ADC12 aluminum display frames is affected by size, processing precision, customization degree, and order quantity, showing obvious bulk order price advantage. The mainstream market price range is as follows:
7.1 Standard Fixed‑Size Frames
-
Small batch (1‑499 pieces): $18‑$25 per piece
-
Medium batch (500‑1999 pieces): $15‑$18 per piece (5%‑10% discount)
-
Large batch (≥2000 pieces): $12‑$15 per piece (10%‑15% super discount)
7.2 Custom Special‑Shaped Frames
According to structural complexity and processing difficulty, the unit price is $20‑$40. Long‑term cooperative bulk customized orders can enjoy exclusive negotiated prices, with more favorable comprehensive costs than small‑batch trial production.
Compared with stainless steel and plastic frames, ADC12 aluminum frames have a slightly higher unit price but lower comprehensive maintenance and replacement costs, with higher cost performance in long‑term market application.
8. Core Market Advantages of Aluminum Display Frames
8.1 Superior Comprehensive Performance
Compared with plastic frames (easy to age and deform) and iron frames (heavy and easy to rust), ADC12 aluminum display frames integrate lightweight, high strength, anti‑corrosion and heat dissipation advantages, with comprehensive performance far exceeding traditional frame materials.
8.2 High Processing Precision & Good Consistency
Supported by 5‑axis CNC precision processing technology, the product tolerance is stable within ±0.005mm, and the batch product consistency is high, avoiding the uneven splicing problem of low‑quality frames, which is irreplaceable for high‑end display equipment.
8.3 Strong Customization Flexibility
It can realize personalized customization of size, shape, groove structure, and surface treatment, adapting to standardized mass production and special‑shaped personalized scene needs, covering full‑scene display equipment matching.
8.4 Low Comprehensive Operation Cost
Long service life, no frequent replacement and maintenance, stable batch processing quality and low rework rate. Although the single processing cost is slightly higher, the long‑term comprehensive use cost is significantly lower than traditional frames.
8.5 Industry Standardization Recognition
ADC12 aluminum alloy has become the designated mainstream material for high‑end display frames in the industry, with wide market recognition and strong industry universality, convenient for subsequent equipment upgrading and replacement matching.
9. Industry Expert Viewpoints on ADC12 Die‑Cast Display Frames
ADC12 aluminum die‑cast display frames processed by 5‑axis CNC have become the industry standard configuration “With the upgrading of display equipment towards high precision and large splicing, traditional plastic and iron frames have been completely unable to meet market demand. Its one‑piece forming and high‑precision processing characteristics effectively solve the pain points of poor splicing accuracy and easy deformation of display equipment. In the next few years, aluminum display frames will fully occupy the mainstream market of commercial and industrial display supporting hardware.”— Dr. Zhang, Senior Precision Manufacturing Expert, China Hardware Processing Industry Association
“The biggest advantage of ADC12 aluminum alloy applied to display frames is the balance of formability and stability. Its high fluidity is suitable for complex frame die‑casting, and its excellent thermal conductivity and structural stability ensure the long‑term stable operation of display screens. Manufacturers with mature 5‑axis batch processing technology can control the product rework rate below 1%, which is the core guarantee for high‑quality display hardware supply.”— Li Ming, Senior Process Engineer of National Non‑Ferrous Metal Machining Laboratory
10. Industry FAQ: Common Questions About Aluminum Display Frames
10.1 Why choose ADC12 aluminum alloy instead of other aluminum materials for display frames?
Answer: ADC12 has ultra‑high molten fluidity, suitable for complex frame die‑casting forming, with stable mechanical properties and moderate cost. Compared with 6061 aluminum alloy, it has better batch forming efficiency and lower die‑casting cost; compared with high‑strength titanium alloy aluminum, it has higher cost performance, which is the most suitable material for mass production of display frames.
10.2 Are aluminum display frames suitable for long‑term outdoor use?
Answer: Yes. After professional anodization and sandblasting surface treatment, ADC12 aluminum frames have excellent anti‑corrosion, anti‑oxidation and wind resistance, which can adapt to outdoor high temperature, rain and other harsh environments, with a service life of more than 8 years.
10.3 Can customized special‑shaped aluminum display frames be mass‑produced?
Answer: Yes. Professional manufacturers can complete die‑casting mold opening and 5‑axis precision processing according to customer drawings and samples, realizing small‑batch trial production and large‑batch mass production of various special‑shaped curved and irregular frames, with stable batch quality.
10.4 What is the delivery cycle of batch aluminum display frame orders?
Answer: Standard in‑stock frames can be delivered within 3‑5 working days; conventional customized batches are delivered within 7‑10 working days; large‑batch bulk orders can realize priority production and shorten the delivery cycle on the premise of guaranteed quality.
10.5 What post‑processing surface treatments can be provided for the frames?
Answer: We support anodization, sandblasting, powder spraying, passivation and other surface treatments, which can improve the appearance texture and environmental adaptability of the frame, meeting different customer appearance and protection standard requirements.
11. Industry Summary & Development Trends of Custom Die‑Cast Products
11.1 Industry Summary
Custom ADC12 aluminum die‑cast display frames are indispensable core hardware accessories in the display equipment industry. With the advantages of high precision, high stability, strong customization and low comprehensive cost, they have completely replaced traditional material frames and are widely used in commercial, industrial, stage and public media fields. The industry has formed a development pattern dominated by precision die‑casting + 5‑axis CNC finishing, and product quality and processing precision have become the core competitive indicators of enterprises.
11.2 Future Development Trends
-
Intelligent Precision Upgrading: The industry will further move towards ultra‑high precision processing, and intelligent on‑machine detection will be popularized to improve batch product consistency.
-
Customization Diversification: Personalized special‑shaped frames and integrated structural frames will become mainstream, and the demand for customized die‑cast products will continue to grow.
-
Green Low‑Carbon Processing: Environmental protection cooling and low‑energy consumption processing technology will be widely used to reduce production energy consumption and meet green manufacturing standards.
-
Cost‑Effective Popularization: With the popularization of 5‑axis processing equipment, the comprehensive processing cost of high‑precision die‑cast products will be reduced, and the market penetration rate will continue to increase.
12. How to Choose a High‑Quality Hardware Processing Supplier
Selecting a reliable die‑cast hardware processing supplier is the key to ensuring display frame quality and stable supply. The core selection standards are as follows:
-
Professional Processing Equipment: Equipped with genuine full‑linkage 5‑axis CNC machining centers to ensure ultra‑high processing precision and avoid pseudo 5‑axis equipment with unstable quality.
-
Mature Material Processing Experience: Rich batch processing experience in ADC12 aluminum die‑cast products, familiar with material characteristics and processing pain points, to ensure stable product quality.
-
Complete Quality Inspection System: Equipped with professional coordinate measuring instruments and full‑process quality inspection procedures to strictly control product tolerance and appearance quality.
-
Strong Customization Ability: Support drawing customization, sample trial production and mold opening production, meeting personalized and diversified order needs.
-
Transparent Quotation & Preferential Mechanism: Clear charging standards, perfect bulk order discount policies, and no hidden costs.
-
Stable Delivery & Perfect After‑Sales: Have independent production workshops, guarantee delivery cycles, and provide professional after‑sales technical support.
13. Company Recommendation & Bulk Order Preferential Policy
13.1 Enterprise Introduction: Xinghang Precision Hardware
Xinghang Precision Hardware is a professional one‑stop customized die‑cast hardware processing manufacturer located in Guangdong, China, focusing on 5‑axis CNC precision machining and ADC12 aluminum die‑cast product customization. We have 12 sets of high‑precision full‑linkage 5‑axis CNC machining centers, with mature production experience in aluminum display frames, new energy equipment shells, communication hardware and other die‑cast products. We support full‑process customization from drawing design, mold opening, sample trial production to batch mass production, providing one‑stop hardware processing solutions for global customers.
Our products strictly comply with ISO 9001 quality management system standards, with full inspection before delivery, stable product tolerance and excellent surface quality, winning long‑term recognition from customers at home and abroad.
13.2 Bulk Order Preferential Policy
To reward long‑term cooperative customers and reduce procurement costs, we launch progressive bulk order discount policies for all customized die‑cast products including aluminum display frames:
-
Small Batch Order (1‑499 pcs): Original quoted price, free conventional full quality inspection service.
-
Medium Batch Order (500‑1999 pcs): 5%‑10% exclusive discount, free customized product packaging.
-
Large Batch Order (≥2000 pcs): 10%‑15% super preferential discount, priority production + free door‑to‑door delivery service.
-
Long‑Term Monthly Cooperative Orders: Negotiable exclusive lowest factory price, dedicated project manager one‑to‑one docking, priority delivery and after‑sales guarantee.
The larger the order quantity, the more favorable the unit price. We sign formal cooperative contracts to fully guarantee customer legitimate rights and interests.
14. Contact Information
Welcome global purchasers and display equipment manufacturers to consult ADC12 aluminum display frame customization, various die‑cast product shell processing, sample trial production and bulk order cooperation. Our full‑time business team will provide you with free drawing evaluation, professional scheme design and accurate quotation:
-
Phone / WhatsApp / WeChat: +86 18819502691
-
Official Business Email: liqine@xinghangcn.com
-
Core Service Scope: Customized processing of ADC12 aluminum display frames, all kinds of aluminum die‑cast housings, precision CNC hardware parts, OEM batch production services
We look forward to establishing long‑term stable strategic cooperative relations with you and creating win‑win development!
