What is an Integrated Die-cast Aluminum Power Supply Heat Sink Housing？
Table of Contents
- 1. Overview of Integrated Die-cast Aluminum Power Supply Heat Sink Housing
- 2. Core Parameter Specifications of ADC12 Integrated Heat Sink Housing
- 3. Core Functions and Key Roles of Integrated Die-cast Heat Sink Housing
- 4. Unique Advantages of ADC12 Integrated Die-cast Aluminum Heat Sink Housing
- 5. Industry Expert Viewpoints on Integrated Die-cast Heat Dissipation Housing
- 6. Frequently Asked Questions (FAQs)
- 7. Industry Development Trends & How to Select a Qualified Hardware Processing Supplier
- 8. Cooperate With Us – Xinghang Precision Hardware
- 9. Conclusion

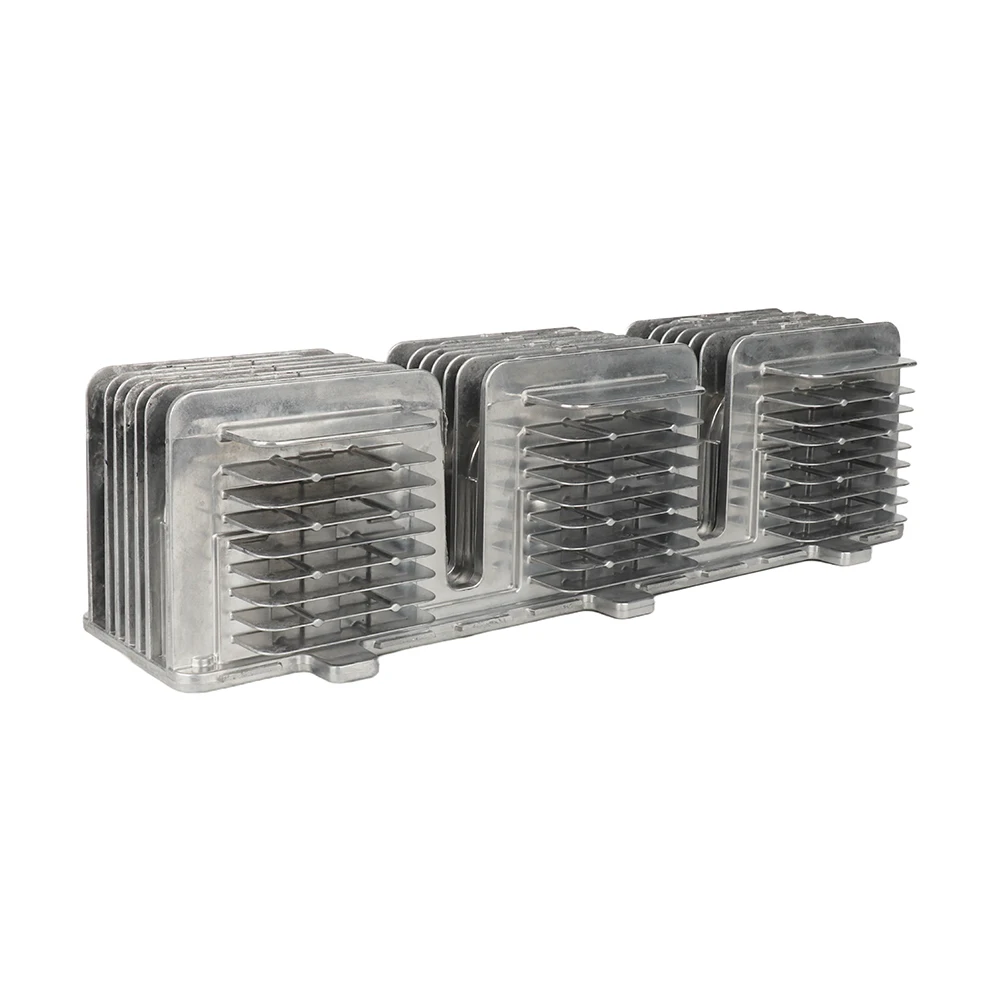

1. Overview of Integrated Die-cast Aluminum Power Supply Heat Sink Housing
1.1 Definition of the Product
An integrated die-cast aluminum power supply heat sink housing is a one-piece molded precision hardware component specially designed for power supply equipment heat dissipation and structural protection. It adopts one-time high-pressure die-casting molding technology with ADC12 aluminum alloy as the core raw material, integrating heat sink fins, equipment housing, mounting brackets and sealing structures into a single component. Different from traditional split heat dissipation shells, this integrated structure eliminates assembly gaps and loose parts, realizing the dual integration of heat dissipation function and structural protection.
1.2 Core Application Scenarios
This high-performance heat sink housing is widely applied in switching power supplies, industrial power adapters, new energy vehicle power modules, communication power supplies and intelligent equipment power systems. It solves the common pain points of traditional power supply housings such as poor heat dissipation, easy deformation, inconvenient assembly and short service life, becoming the standard matching component for mid-to-high-end power supply equipment.
2. Core Parameter Specifications of ADC12 Integrated Heat Sink Housing
2.1 ADC12 Alloy Material Basic Features
The integrated die-cast heat sink housing strictly adopts ADC12 aluminum alloy compliant with JIS H5302 Japanese Industrial Standard. This high-silicon aluminum-copper alloy features excellent casting fluidity, low shrinkage rate and stable thermal conductivity, which is very suitable for complex integrated fin structure molding. It maintains stable mechanical and heat dissipation performance in long-term high-temperature operation environments, making it the preferred material for mass production of power supply heat dissipation housings.
2.2 Complete Universal Parameter Specification Table
| Parameter Item | Universal Specifications |
|---|---|
| Alloy Standard | JIS H5302 Industrial Standard (ADC12) |
| Silicon (Si) Content | 9.6% - 12.0% |
| Copper (Cu) Content | 1.5% - 3.5% |
| Thermal Conductivity | 96 W/(m·K) |
| Tensile Strength | 270 - 310 MPa |
| Hardness | 85 - 95 HB |
| Processing Precision Tolerance | ±0.01mm - ±0.05mm (customizable ultra-high precision) |
| Optional Surface Treatment | Anodizing, sandblasting, passivation, laser engraving |
| Operating Temperature Range | -40℃ to 120℃ (long-term stable operation) |
| Main Processing Technology | Integrated high-pressure die-casting, CNC fine milling, deburring |
3. Core Functions and Key Roles of Integrated Die-cast Heat Sink Housing
3.1 Efficient Integrated Heat Dissipation Function
As the core function of the product, integrated high-efficiency heat dissipation solves the overheating problem of power supply equipment. The integrated fin structure designed by professional molding increases the heat dissipation area by 30%-50% compared with traditional split structures. Relying on the stable thermal conductivity of ADC12 aluminum alloy, it can quickly export the heat generated by power supply operation, avoid equipment performance attenuation, circuit burnout and shutdown failure caused by overheating, and greatly improve the continuous working stability of power supply equipment.
3.2 All-round Structural Protection Role
The one-piece die-cast integrated structure has high overall rigidity and impact resistance. It can effectively wrap and protect internal power supply circuits, chips and electronic components, isolate external dust, moisture and weak acid-base corrosion, and prevent structural damage caused by equipment vibration and collision during operation and transportation. It provides reliable structural safety guarantee for power supply equipment in complex industrial and outdoor working environments.
3.3 Precision Assembly and Installation Positioning
The integrated housing reserves precision mounting holes and positioning structures during die-casting molding, with machining tolerance controlled within ±0.01mm. It realizes zero-gap precise assembly with power supply equipment, avoids assembly deviation and loose installation of traditional split accessories, improves the overall assembly efficiency of products, and ensures the stable installation and operation of power supply equipment.
3.4 Lightweight and Energy-Saving Optimization
Compared with iron and stainless steel power supply housings, the ADC12 integrated aluminum heat sink housing is lightweight and high-strength, reducing the overall weight of power supply equipment by more than 60%. It conforms to the lightweight design trend of industrial equipment, reduces equipment load and energy consumption, and is suitable for portable power supplies, vehicle-mounted power supplies and mobile intelligent equipment scenarios.
4. Unique Advantages of ADC12 Integrated Die-cast Aluminum Heat Sink Housing
4.1 Integrated Molding, No Assembly Gap
Different from traditional split heat sink and housing assembly structures, integrated die-cast molding technology realizes one-piece forming of heat dissipation fins and protective housing. There is no assembly gap or connecting gap inside the product, which avoids heat loss and dust accumulation caused by gaps, and greatly improves heat dissipation efficiency and equipment sealing performance.
4.2 Stable Heat Dissipation and High Thermal Efficiency
With matched ADC12 aluminum alloy thermal performance and optimized fin density design, the product has uniform heat conduction and fast heat dissipation speed. It maintains stable heat dissipation efficiency under long-term high-load operation, no heat dissipation attenuation, and effectively controls the operating temperature of power supply equipment within a safe range, extending the service life of electronic components by more than 40%.
4.3 High Structural Strength and Strong Durability
After high-pressure die-casting and precision finishing, the integrated housing has dense internal structure, no pores or shrinkage defects. With high hardness and strong impact resistance, it can adapt to high-frequency vibration and high-temperature working environments for a long time. After anodizing and passivation surface treatment, it has excellent corrosion resistance, and the service life is 3-5 times longer than ordinary split power supply housings.
4.4 High Cost Performance and Short Delivery Cycle
ADC12 aluminum alloy has low raw material cost and mature integrated die-casting mass production technology. The one-piece molding process saves secondary assembly processes, reduces labor and time costs. Compared with stainless steel and customized copper heat dissipation structures, it has higher comprehensive cost performance and supports rapid mass production and delivery.
4.5 Flexible Customization and Wide Compatibility
The product supports personalized customization of size, fin structure, mounting position, surface treatment and appearance according to different power supply power and equipment specifications. It is compatible with industrial power supplies, new energy power modules, communication power supplies and other multi-scenario applications, meeting the differentiated design needs of various manufacturers.
5. Industry Expert Viewpoints on Integrated Die-cast Heat Dissipation Housing
Li Ming, a senior precision die-casting technology expert and industrial manufacturing researcher, pointed out: "With the upgrading of industrial intelligent equipment and the improvement of power supply power density, the traditional split power supply heat dissipation structure can no longer meet the high-efficiency and stable operation needs of high-power power supplies.ADC12 integrated die-cast aluminum power supply heat sink housing has become the mainstream replacement product in the industry by virtue of its integrated heat dissipation, high sealing and high stability advantages."
He further emphasized: "The core competitiveness of power supply heat dissipation components in the future lies in structural integration and process precision. Integrated die-casting technology eliminates the hidden dangers of traditional assembly gaps and loose structures, and ADC12 alloy's balanced thermal conductivity and mechanical strength can perfectly match the long-term high-load operation of industrial power supplies. Manufacturers with mature integrated die-casting precision processing capabilities will occupy the main market share."
Industry market analysts added: "Driven by new energy, 5G communication and industrial automation industries, the market demand for high-performance integrated aluminum heat sink housings will maintain a steady growth rate of 8.2% annually from 2026 to 2030, and integrated molded heat dissipation components will fully replace traditional split products in the high-end manufacturing field."
6. Frequently Asked Questions (FAQs)
Q1: Why choose ADC12 alloy for integrated die-cast heat sink housing?
ADC12 aluminum alloy has excellent casting performance, stable thermal conductivity and balanced mechanical strength. It is suitable for complex integrated fin structure die-casting molding, with low production defect rate and high mass production stability. Compared with other aluminum alloys, it has higher cost performance and can fully meet the heat dissipation and structural protection needs of most industrial power supply equipment, which is the most ideal material for integrated heat sink housing.
Q2: What is the precision standard of customized integrated heat sink housing?
Our conventional processing precision tolerance of ADC12 integrated die-cast heat sink housing is ±0.01mm to ±0.05mm. We can provide ultra-high precision customization up to ±0.005mm according to customer's equipment requirements, and support personalized adjustment of fin density, housing size and mounting structure to meet high-end precision power supply equipment needs.
Q3: What surface treatment processes are available for the product?
We provide multiple mature surface treatment processes including anodizing, sandblasting, electroplating, passivation and laser engraving. Anodizing and passivation can enhance corrosion resistance and wear resistance; sandblasting optimizes product appearance texture; laser engraving supports customized logo and parameter marking, meeting functional and appearance dual requirements.
Q4: Can the integrated heat sink housing work stably at high temperature?
Yes. The ADC12 alloy material has a stable thermal expansion coefficient and excellent thermal stability. The integrated dense structure will not deform or loose under long-term high-temperature operation. It can work stably in the temperature range of -40℃ to 120℃, effectively ensuring the continuous and stable operation of power supply equipment in high-temperature industrial environments.
Q5: What are the delivery and discount policies for mass orders?
For conventional standard products, we support spot delivery within 3 working days. For customized mass orders, the delivery cycle is 7-15 working days according to product complexity. We implement a bulk order preferential policy: the larger the order quantity, the more favorable the unit price, and long-term cooperative customers can enjoy exclusive customized pricing and priority delivery services.
7. Industry Development Trends & How to Select a Qualified Hardware Processing Supplier
7.1 2026-2030 Industry Development Trends
7.1.1 High Precision and Ultra-Integration
With the miniaturization and high power density of power supply equipment, integrated heat sink housings are developing towards higher precision and ultra-compact integration. The industry's precision tolerance standard is continuously upgraded, and multi-functional integrated structures with heat dissipation, sealing, waterproofing and installation will become the mainstream design trend.
7.1.2 Green and Low-Carbon Manufacturing
Aluminum alloy materials are 100% recyclable, matching the global green manufacturing trend. The industry is gradually promoting environmentally friendly surface treatment processes and low-energy die-casting production technologies to reduce production pollution and energy consumption, and green low-carbon products will have greater market competitive advantages.
7.1.3 Intelligent Customized Production
Downstream power supply equipment has diversified and personalized design requirements. The industry is transforming from single standardized mass production to intelligent flexible customization, realizing fast response and efficient production of multi-variety, small-batch and large-batch customized orders.
7.2 Key Standards for Selecting a Qualified Processing Supplier
7.2.1 Complete Processing and Quality Inspection System
Reliable suppliers must have professional high-pressure die-casting equipment, CNC precision processing production lines and a complete quality management system. They need to implement full-process inspection of product size, tolerance, hardness and internal defects to ensure zero-defect delivery of integrated heat sink housings.
7.2.2 Professional Industry Service Experience
Priority should be given to suppliers with long-term experience in power supply heat dissipation component processing. Professional manufacturers can accurately grasp product structural design and heat dissipation performance requirements, and provide targeted processing solutions to avoid product performance defects caused by process errors.
7.2.3 Stable Mass Production and Delivery Capacity
Excellent suppliers have independent standardized production workshops and sufficient production capacity, which can stably meet large-batch order demands and ensure fixed-cycle delivery. Avoid cooperating with small workshops with unstable processes and delayed delivery.
7.2.4 Flexible Customization and Cost-Effective Pricing
Qualified suppliers support full-process personalized customization and have transparent and reasonable pricing mechanisms. They adhere to quality-oriented production, provide long-term cost-effective procurement solutions, and launch bulk preferential policies to reduce customers' comprehensive procurement costs.
8. Cooperate With Us – Xinghang Precision Hardware
8.1 Our Core Strengths
Xinghang Precision Hardware is a professional manufacturer focusing on R&D, die-casting processing and customized production of ADC12 integrated die-cast aluminum power supply heat sink housing. We own advanced high-pressure die-casting production lines, CNC five-axis precision processing equipment and a professional quality inspection team.
All our products strictly comply with JIS H5302 international industrial standards, with precise processing dimensions, stable heat dissipation performance and reliable structural quality. We have long served numerous enterprises in new energy, communication, industrial automation and power equipment industries, and won wide customer recognition with stable quality and professional services.
8.2 Exclusive Bulk Cooperation Preferential Policy
To feedback new and old customers' trust, we launch a gradient bulk discount policy: the more you order, the lower the unit price. For long-term large-batch cooperative orders, we provide exclusive customized pricing, priority production and delivery, free sample testing and free after-sales maintenance services, helping customers maximize cost savings.
8.3 Official Contact Information
Welcome global customers to consult, customize and negotiate long-term cooperation! We provide one-stop integrated die-cast heat sink housing processing solutions.
Phone / Whatsapp / WeChat: +86 18819502691
Email: liqine@xinghangcn.com
9. Conclusion
ADC12 integrated die-cast aluminum power supply heat sink housing is a core high-performance component integrating heat dissipation, structural protection and precision assembly. Compared with traditional split heat dissipation housings, it has irreplaceable advantages in heat dissipation efficiency, structural stability, assembly accuracy and comprehensive cost performance, and has become an essential matching part for modern industrial power supply, new energy and communication equipment.
Driven by the trend of industrial lightweighting, high efficiency and green manufacturing, the integrated die-cast heat sink housing industry will continue to develop towards high precision, multi-functional integration, green environmental protection and intelligent customization. In the increasingly fierce market competition, selecting a professional, stable and high-quality hardware processing supplier is crucial to product quality and long-term business development.
As a professional precision die-casting manufacturer, Xinghang Precision Hardware always adheres to the service concept of "quality first, customer foremost". We rely on mature processing technology, strict quality control and flexible preferential policies to provide global customers with high-quality integrated die-cast aluminum heat sink housing products and intimate one-stop services. We sincerely look forward to establishing long-term win-win cooperative relationships with customers worldwide!
